Loading Table
Product Model :
|

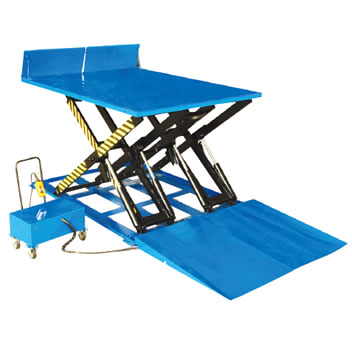

Loading Table HY2500
* Heavy duty design.

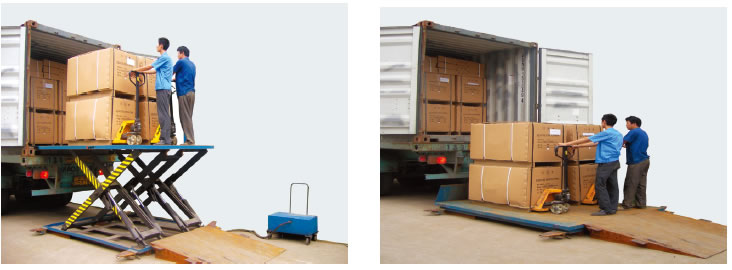

* For loading and unloading goods between ground and containers or trucks.
* Removable lifting eye to handling and loading table installation.
* Meet EN1570 norm and ANSI/ASME safety standard.
|
Model |
|
HY2500 |
|
Capacity |
(kg) |
2500 |
|
Lowered Height |
(mm) |
130 |
|
Raised Height |
(mm) |
1700 |
|
Platform Size |
LxW (mm) |
2000x2600 |
|
Base Frame Size |
(mm) |
1900X2510 |
|
Lift Time |
(sec) |
60~70 |
|
Power Pack |
|
380V/50HZ, AC 2.2kw |
|
Net Weight |
(kg) |
1700 |
