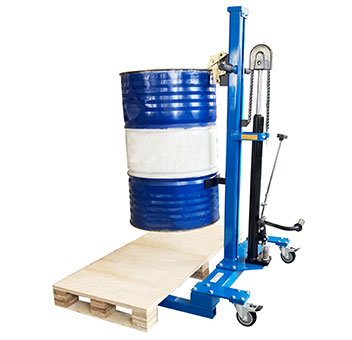

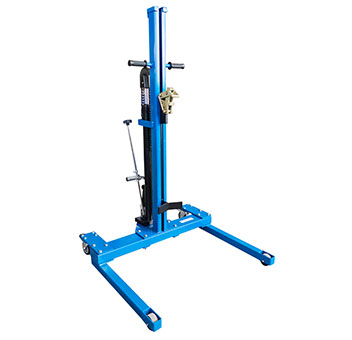

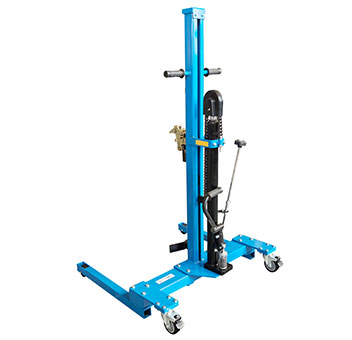

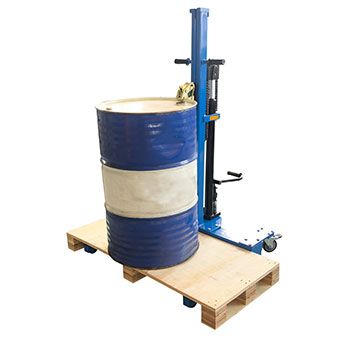

Hydraulic Drum Truck
Product Model :
|
Hydraulic Drum Truck WA series
* Ergonomic, transports, and places poly, steel, or fiber drums on or off pallets.
* A spring-loaded clamp securely holds any rimmed drum.
* High lifting height for ledge and car.
* Compact design and less-effort operation.
* Disassembling easy and for small carton store.
|
Model |
|
WA30A |

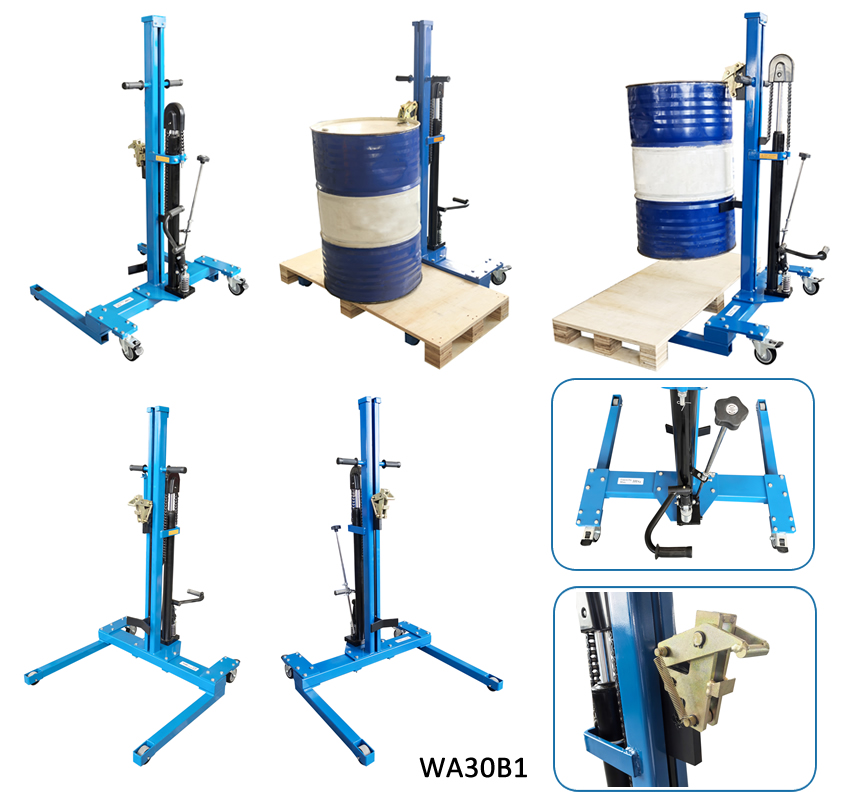

WA30B(low Profile) |
|
Lifting Capacity |
(kg) |
300 |
300 |
|
Drum Size |
|
572mm (22.5‘‘Diameter), 210 Lifters (55 gallon) |
572mm (22.5‘‘Diameter), 210 Lifters (55 gallon) |
|
Front Wheel |
Dia.xWid (mm) |
Φ125×32 |
Φ64×37 |
|
Rear Castor |
Dia.xWid (mm) |
Φ125×32 |
Φ80×32 |
|
Dimension |
H1 (mm) |
870 |
835 |
|
|
H2 (mm) |
1675 |
1640 |
|
Overall Dimension |
LxWxH (mm) |
952×956×1560 |
866×956×1525 |
|
Net Weight |
(kg) |
72 |
68 |
