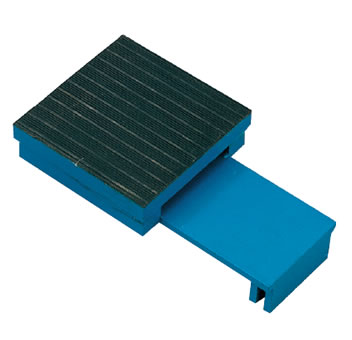

Packing Plate
Product Model :
|
Packing Plate PC series
* Packing plate for compensating the difference in height between skates with turntable and the one without turntable.
|

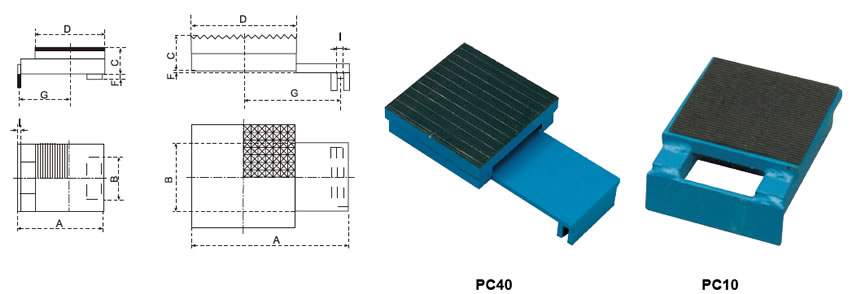

Model |
A |
B |
C |
D |
F |
G |
I |
Wt. (kg) |
|
PC10 |
153 |
74 |
37 |
120 |
8 |
88 |
5 |
3.7 |
|
PC20 |
153 |
86 |
37 |
120 |
8 |
88 |
5 |
3.7 |
|
PC30 |
175 |
95 |
45 |
130 |
8 |
105 |
5 |
5.3 |
|
PC40 |
270 |
114 |
61 |
180 |
3 |
165 |
11 |
13.8 |
|
PC50 |
350 |
128 |
61 |
200 |
3 |
235 |
11 |
18.8 |
