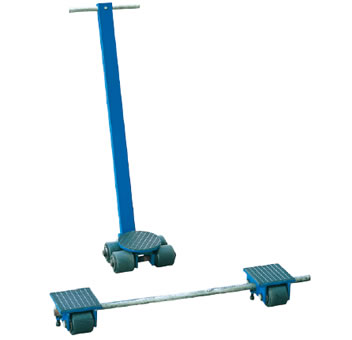

Steerable Skates
Product Model :
|

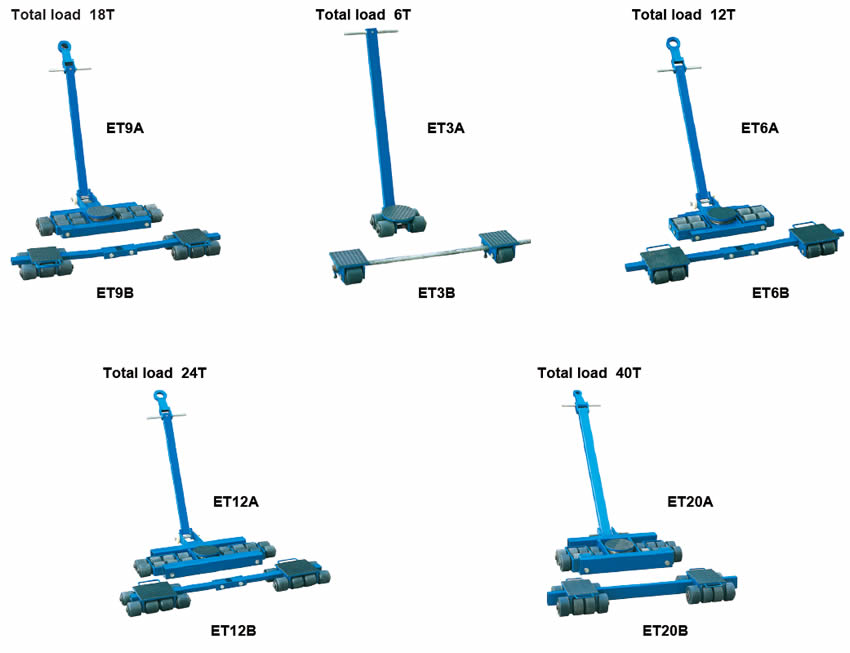

Steerable Skates ET series
* Professional class
* You can get smooth running on this series skates.
* Skates are available in two versions type A & B.
* Type A can be steerable, Type B can be laterally adjustable.
* Power coated give a high quality durable finish.
|
Model |
ET3A |
ET6A |
ET9A |
ET12A |
ET20A |
|
|
Capacity |
(tonne) |
3 |
6 |
9 |
12 |
20 |
|
Loading Height |
(mm) |
110 |
110 |
110 |
110 |
180 |
|
Roller Size |
(mm) |
Φ85×85 |
Φ85×85 |
Φ85×85 |
Φ85×85 |
Φ140×85 |
|
Number of Roller |
(pcs) |
4 |
8 |
12 |
16 |
16 |
|
Dia of 180°Rotating Platform |
(mm) |
170 |
170 |
170 |
170 |
250 |
|
Dimensions |
L×W (mm) |
270×230 |
610×520 |
815×600 |
990×600 |
1090×730 |
|
Length of Handlebar (with pulling eye) |
(mm) |
960 |
1080 |
1080 |
1080 |
1620 |
|
Net Weight |
(kg) |
15 |
45 |
56 |
73 |
188 |
|
Model |
ET3B |
ET6B |
ET9B |
ET12B |
ET20B |
|
|
Capacity |
(tonne) |
3 |
6 |
9 |
12 |
20 |
|
Loading Height |
(mm) |
110 |
110 |
110 |
110 |
180 |
|
Roller Size |
(mm) |
Φ85×85 |
Φ85×85 |
Φ85×85 |
Φ85×85 |
Φ140×85 |
|
Number of Roller |
(pcs) |
4 |
8 |
12 |
16 |
16 |
|
Dimensions of Load Bearing Area |
(mm) |
150×150 |
200×220 |
180×170 |
200×220 |
280×220 |
|
Range of Connecting Rod Adjustable |
(mm) |
960 |
1080 |
1080 |
1080 |
1620 |
|
Net Weight |
(kg) |
16 |
32 |
4 |
45 |
95 |
