Roller Skates
Product Model :
  • VA0.75
  • VA2.5
  • VA5
  • VA8
  • VA15
  • VA20
  • VA50

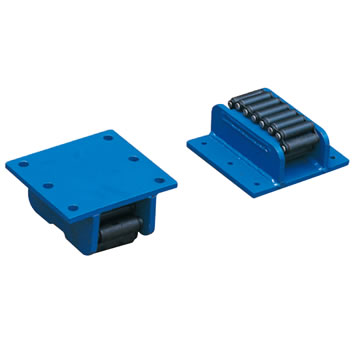

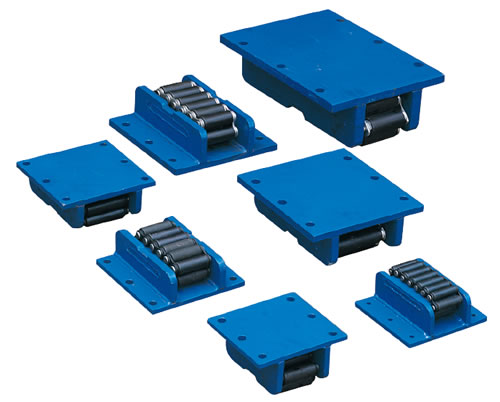

Roller Skates            VA series

* Ideal for linear, repetitive movement, or use as a built-in component in equipment,
* Rollers are built for long lift and a wide range.
* Rollers have a fixed hole pattern for bolt-mounting.
* Rollers can be used right side up, inverted, or on their side.



Model

Capacity

Size of Roller

Number of Roller

Dimension

Net Weight

(tonne)

Φ×L (mm)

(pcs)

L×W×H (mm)

(kg)

VA0.75

0.75

17×51

16

165×178×79

5

VA2.5

2.5

24×62

12

165×178×92

10

VA5

5

24×62

13

203×203×79

10

VA8

8

24×84

13

203×203×79

11

VA15

15

30×70

14

270×254×98

21

VA20

20

30×102

14

270×254×98

22

VA50

50

41×89

20

417×305×140

67
