Roller Skates
Product Model :
|

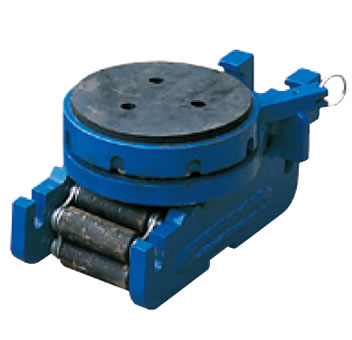

Roller Skates VB / VD / VP
* Low profile rollers suit for wide range of operating condition.
* Each has a respective attachment to provide turning and positioning capability.

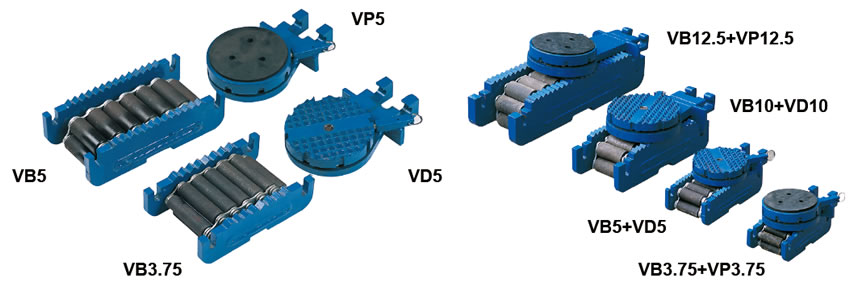

* Two types swivel top are available: VD-Diamond top, VP-Rubber pad top.
.jpg)
|
Model |
Capacity |
Size of Roller |
Number of Roller |
Dimension |
Net Weight |
|
(tonne) |
Φ×L (mm) |
(pcs) |
L×W×H (mm) |
(kg) |
|
|
VB3.75 |
3.75 |
24×62 |
13 |
219×117×70 |
7 |
|
VB5 |
5 |
24×84 |
13 |
219×140×70 |
9 |
|
VB10 |
10 |
30×70 |
14 |
264×133×86 |
13 |
|
VB12.5 |
12.5 |
30×80 |
14 |
264×143×86 |
14 |
|
VB25 |
25 |
41×89 |
14 |
397×171×121 |
36 |
|
VB65 |
65 |
49×92 |
18 |
584×191×143 |
71 |
|
Swivel Attachment:VD-Diamond top, VP-Rubber pad top |
||||||
|
Model |
Height (Combined with roller) |
Length |
Width |
Net Weight |
||
|
(mm) |
(mm) |
(mm) |
(kg) |
|||
|
VD3.75 |
VP3.75 |
113 |
132 |
283 |
149 |
6 |
|
VD5 |
VP5 |
113 |
132 |
283 |
149 |
6 |
|
VD10 |
VP10 |
129 |
148 |
324 |
152 |
7 |
|
VD12.5 |
VP12.5 |
129 |
148 |
324 |
152 |
7 |
|
VD25 |
VP25 |
181 |
189 |
457 |
203 |
18 |
|
VD65 |
VP65 |
203 |
222 |
641 |
203 |
21 |
