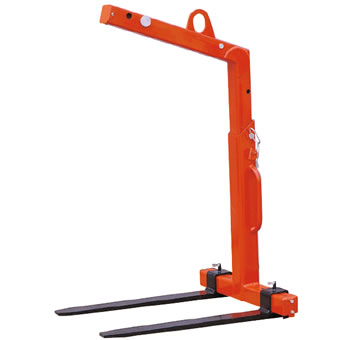

Crane Fork
Product Model :
|
Crane Fork CK / CY series
* No slings or chains necessary.
* Crane operator will not need to leave cab of lorry or crane.
* Forks will remain horizontal when loaded and unloaded.
* Adjustable fork width.
* Adjustable height.
|

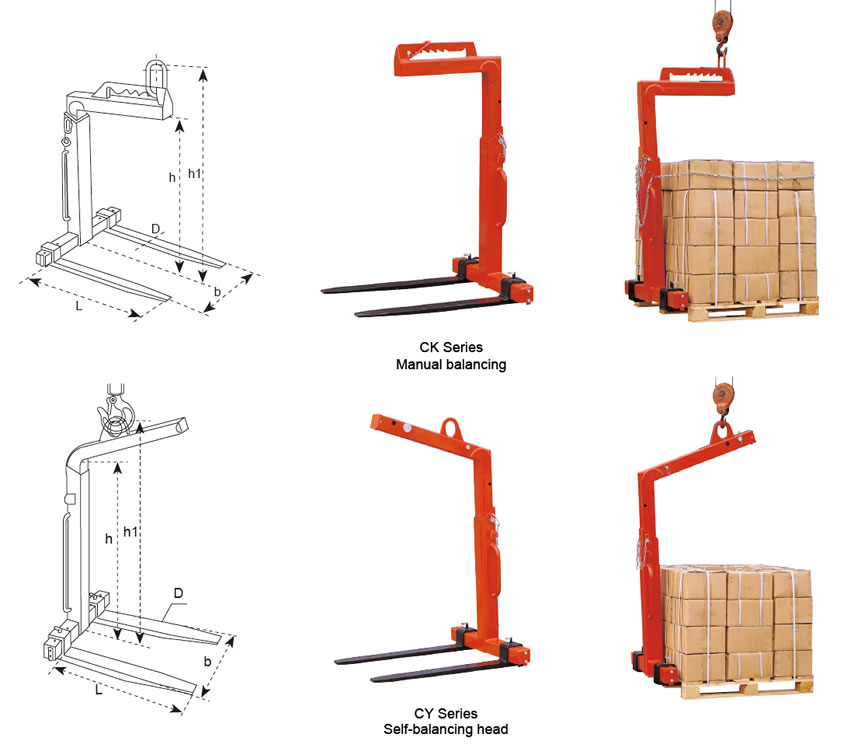

Model |
Work Load Limit |
Adjustable Fork Width |
Hook Height |
Effective Height |
Fork Length |
Fork Cross |
Overall Size |
Net Weight |
|
WLL (tonne) |
b (mm) |
h1 (mm) |
h (mm) |
L (mm) |
D (mm) |
L×W×H (mm) |
(kg) |
|
|
CK10 |
1 |
350-900 |
1390-1890 |
1100-1600 |
1000 |
100×30 |
1120×920×1390 |
130 |
|
CK20 |
2 |
400-900 |
1640-2340 |
1300-2000 |
1000 |
120×40 |
1140×920×1640 |
200 |
|
CK30 |
3 |
450-900 |
1670-2370 |
1300-2000 |
1000 |
120×50 |
1140×920×1670 |
250 |
|
CK50 |
5 |
530-1000 |
1700-2400 |
1300-2000 |
1000 |
150×60 |
1160×1020×1700 |
370 |
|
CY10 |
1 |
350-900 |
1420-1920 |
1100-1600 |
1000 |
100×30 |
1120×920×1530 |
140 |
|
CY20 |
2 |
400-900 |
1655-2355 |
1300-2000 |
1000 |
120×40 |
1140×920×1775 |
220 |
|
CY30 |
3 |
450-900 |
1720-2420 |
1300-2000 |
1000 |
120×50 |
1140×920×1850 |
280 |
|
CY50 |
5 |
530-1000 |
1710-2410 |
1300-2000 |
1000 |
150×60 |
1160×1020×1850 |
380 |
