High Lift Scissor Truck
Product Model :
  • JLA5210
  • JLA6810
  • JEA5210
  • JEA6810

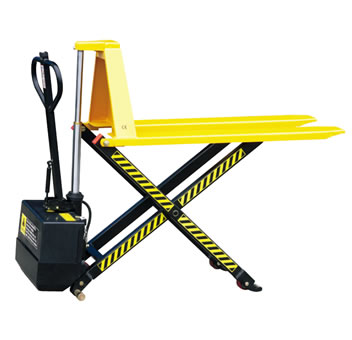

High Lift Scissor Truck        JLA / JEA series

* Economic version but reliable.
* High quality power unit made in USA.
* Top quality power unit made in Europe.
* Safety: Patented safety system on handle to prevent accidental tough of
the release handle thus causing sudden sliding down of the fork, you can
screw the release handle tight in slow or quick lifting position.
* Conforms to EN1757-4.

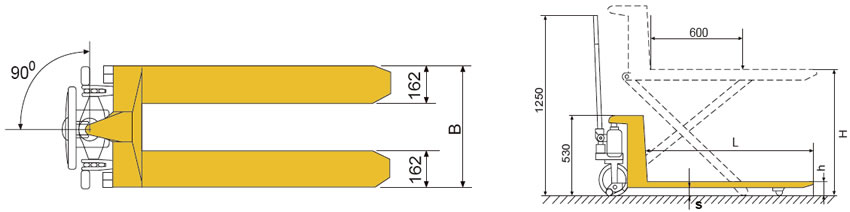

 Model

 JLA5210

 JLA6810

 JEA5210

 JEA6810

 Type

 Manual

 Electric

 Capacity

(kg)

 1000

 1000

 1000

 1000

 Max. Fork Height

(mm)

 800

 800

 800

 800

 Min. Fork Height

(mm)

 85 ± 2

 85 ± 2

 85 ± 2

 85 ± 2

 Fork Width

B (mm)

 520

 680

 520

 680

 Fork Length

L (mm)

 1140

 1140

 1140

 1140

 Ground Clearance

s (mm)

 19.5

 19.5

 19.5

 19.5

 Front Load Roller

(mm)

 Ø75x50

 Ø75x50

 Ø75x50

 Ø75x50

 Steering Wheel

(mm)

 Ø150x40

 Ø150x40

 Ø150x40

 Ø150x40

 Pump Strokes to Max. Height (Without load / With rated load)

 28/67

 28/67





 Lifting Time (Without load / With rated load)





 12/30

 12/30

 Battery

(Ah/V)





 66/12

 66/12

 Battery Charger

(A/V)





 10/12

 10/12

 Net Weight (without battery)

(kg)

 95

 102

 130

 137
