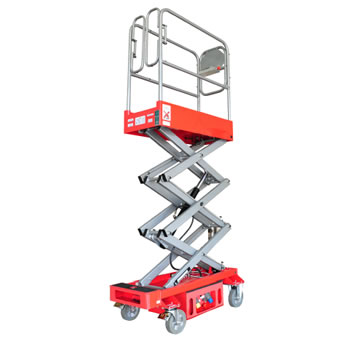

Scissor Aerial Work Platform
Product Model :
|
Scissor Aerial Work Platform ES Series
* Explosion-proof lock valve to avoid a sudden drop if emergency occurs.
* Equip two emergency switch : one is on the controller, one is on the chassis which could be operated on the ground.
* Electric lifting & manual propel
* Wheels will be self-locking when the platform is lifted.
* Emergency Switch could freeze the work platform immediately.
* Overload protection facility is equipped on, the lift will not work when overloaded.
* All the work platforms are passed 1.2 times loading test before leaving factory.
* Guarantee: 12 months, we supply spare parts free and supply technical supporting all the time.
* This type aerial work platform is widely used for aerial work, decoration, street lamp maintenance and building cleaning etc.
* Conforms to EN280, EN1570 and ANSI/ASME safety standard.
.jpg)
|

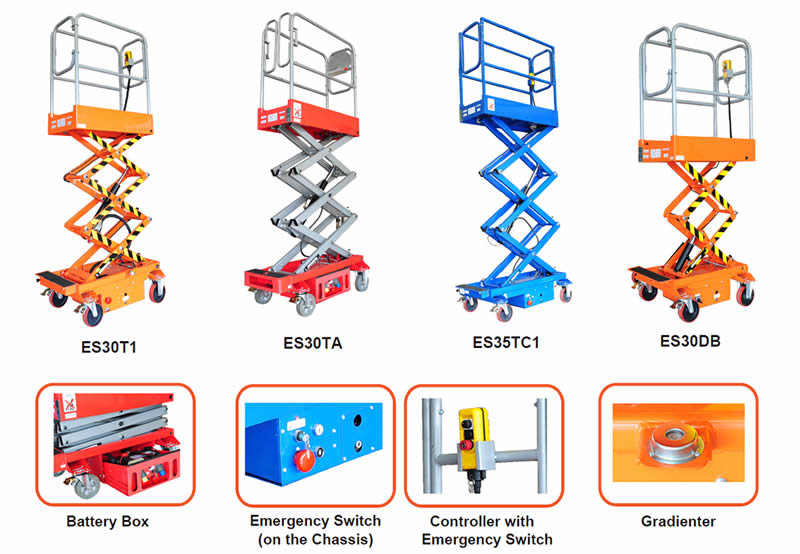

Model |
|
ES30T1 |
ES30TA |
ES35TC1 |
ES30DB |
|
Capacity |
Kg |
240 |
240 |
240 |
240 |
|
Table Size |
mm |
1020×520 |
1110×520 |
1310×520 |
1010×520 |
|
Max. Working Height |
mm |
4550 |
5000 |
5500 |
3600 |
|
Max. Platform Height |
mm |
2550 |
3000 |
3500 |
1600 |
|
Overall Size |
mm |
1260×700×1730 |
1260×780×1810 |
1460×780×1830 |
1165×700×1660 |
|
Min. Ground Clearance |
mm |
50 |
50 |
50 |
50 |
|
Wheel Base |
mm |
870 |
940 |
1140 |
770 |
|
Rising/ Descending Speed |
s |
30/25 |
20/16 |
29/27 |
8/7 |
|
Electric Motor (DC) |
V/Kw |
12/0.8 |
12/0.8 |
12/0.8 |
12/0.8 |
|
Battery |
V/Ah |
12/80 |
12/80 |
12/80 |
12/80 |
|
Charger |
V/A |
12/8 |
12/8 |
12/8 |
12/8 |
|
Wheel Size |
mm |
Φ200 |
Φ200 |
Φ200 |
Φ200 |
|
Net Weight |
Kg |
355 |
332 |
362 |
235 |
