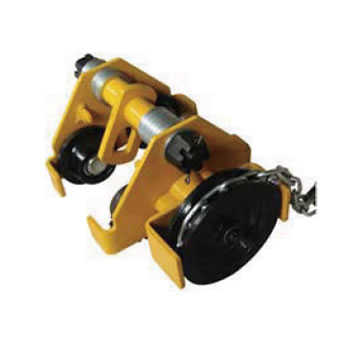

Geared Trolley
Product Model :
|
Geared Trolley GT series
* Universal tread flanged track wheels equipped with shielded ball bearings.
* Spacer washers can be shifted inside or outside for easy adjustment to wide range of beams.
* Manufactured according to prEN 13157:2003, machinery directive 98/37/EC.
|
Model |
Capacity |
Running |
Chain Pull to Drive Rated |
Min. Radus of Curve |
I-beam Recommended(mm) |
Dimensions |
Net Weight |
|||||||||||
|
b |
t min |
(mm) |
||||||||||||||||
|
(kg) |
(m) |
(m) |
Size A |
Size B |
Size A |
Size B |
A |
B |
C |
D |
E |
G |
H |
R |
F |
(kg) |
||
|
GT05 |
500 |
3 |
70 |
0.9 |
64-140 |
64-300 |
25 |
40 |
305 |
212 |
200 |
36 |
24 |
15 |
110 |
60 |
3 |
14 |
|
GT10 |
1000 |
80 |
1.0 |
64-152 |
64-300 |
25 |
40 |
320 |
255 |
230 |
48 |
30.5 |
15 |
125 |
75 |
20.5 |
||
|
GT20 |
2000 |
150 |
1.1 |
76-165 |
76-300 |
25 |
40 |
351 |
302 |
275 |
58 |
36 |
20 |
151 |
89 |
28 |
||
|
GT30 |
3000 |
120 |
1.3 |
76-203 |
76-300 |
25 |
40 |
400 |
345 |
339 |
75 |
45 |
25 |
185 |
112 |
40 |
||
|
GT50 |
5000 |
160 |
1.4 |
88-203 |
88-300 |
25 |
40 |
425 |
378 |
393 |
97 |
60 |
34 |
220 |
125 |
66 |
||
|
GT100 |
10000 |
340 |
1.7 |
125-203 |
125-300 |
40 |
40 |
490 |
445 |
500 |
114 |
80 |
52 |
280 |
150 |
103 |
||
