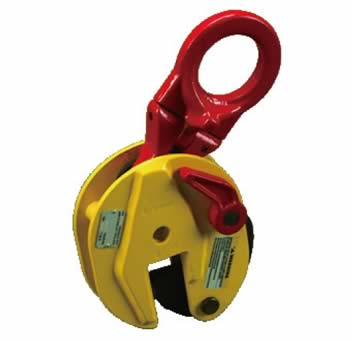

Universal Plate Clamp
Product Model :
|
Universal Plate Clamp PLG series

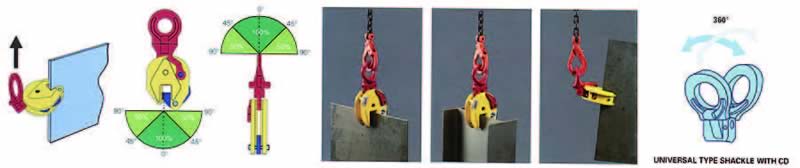

* For lifting and transporting of steel plates and stuctures from all positions (horizontal, vertical and
sidelong).
* Articulated lifting shackle (PLG type).
* Clamps are equipped with a safety mechanism, ensuring the clamp does not slip when lifting force is
applied and when load is being lowered.
* The clamp is closed as well as in open position.
* Manufactured from high quality cabon steel..jpg)
|
Model |
WLL |
Jaw Opening |
Weight |
|
PLG0.8 |
0.8 |
0-15 |
2 |
|
PLG1 |
1.0 |
0-15 |
4 |
|
PLG1(B) |
1.0 |
0-20 |
5 |
|
PLG1.6 |
1.6 |
0-20 |
7 |
|
PLG2 |
2.0 |
0-25 |
8 |
|
PLG3.2 |
3.2 |
0-25 |
15 |
|
PLG3.2(B) |
3.2 |
0-30 |
15 |
|
PLG5 |
5.0 |
0-30 |
21 |
|
PLG5(B) |
5.0 |
0-50 |
23 |
|
PLG8 |
8.0 |
0-45 |
37 |
|
PLG12 |
12.0 |
50-90 |
50 |
|
PLG16 |
16.0 |
60-100 |
65 |
