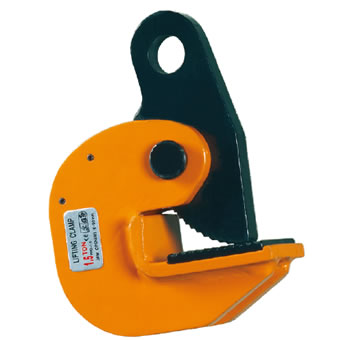

Horizontal Plate Lifting Clamp
Product Model :
  • PLB0.8
  • PLB1
  • PLB1.6
  • PLB2
  • PLB3.2
  • PLB4
  • PLB5
  • PLB6
  • PLB6

Horizontal Plate Lifting Clamp       PLB series

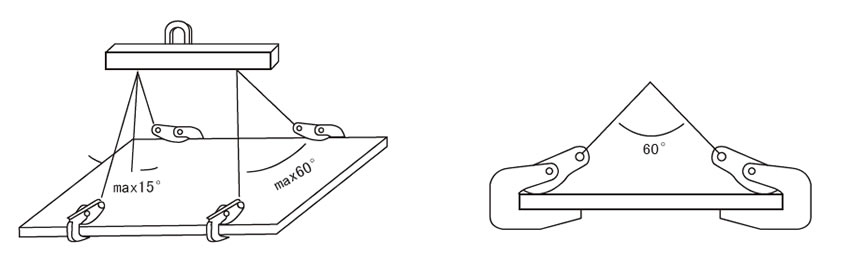

* Designed for the safe handling of plate in horizontal direction.
* Hardened steel jaws for positive grip and locking mechanism.
* Made of drop-forged tested.
* 150% overload factory tested.
* Usually 2 or 4 pcs work together.
* Conforms to EC Council Directive 98/37/EC Machinery.
   American Standard ANSI/ASME B30.20s.




Model

Capacity

Jaw Opening

Net Weight

(T/Pair)

(mm)

(kg)

PLB0.8

0.8

0-25

2.5

PLB1

1

0-30

3.5

PLB1.6

1.6

0-30

4

PLB2

2

0-40

5

PLB3.2

3.2

0-45

6

PLB4

4

0-50

6.5

PLB5

5

0-55

7.5

PLB6

6

0-65

10.5

PLB6(B)

6

0-130

22

PLB8

8

0-100

-

PLB10

10

0-125

-
