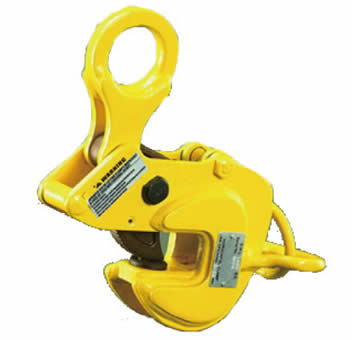

Horizontal Clamp With Lock Device
Product Model :
  • PLT0.5
  • PLT1
  • PLT2
  • PLT3
  • PLT5

Horizontal Clamp With Lock Device        PLT series

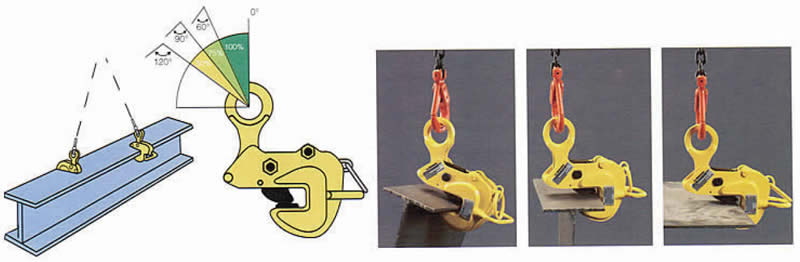

* Suitalbe for lifting and transport of steel plates onstruction and profiled bar in horizontal position.
* Manufactured from high quality carbon steel.
* Avoid snatch or shock loading.
* The spring-load tightening lock mechanism assures a positive initial clamp force.
* The handle makes it easy and safe to set and detach the clamp onto and from the work piece.



Model

WLL
(tonnes)

Jaw Opening
(mm)

Weight
(Kg)

PLT0.5

0.5

0-25

3.2

PLT1

1.0

0-25

5.3

PLT2

2.0

0-30

7.9

PLT3

3.0

0-38

10.5

PLT5

5.0

0-40

27.6
