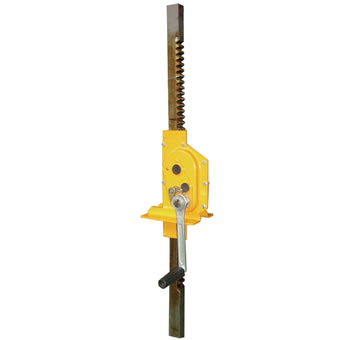

Seat Steel Jack
Product Model :
|
Seat Steel Jack MJS series
|
Model |
MJS1.5 |
MJS3 |
MJS5 |
MJS10 |
|
|
Rated lifting capacity |
(kg) |
1500 |
3000 |
5000 |
10000 |
|
Lifting height |
(mm) |
≥800 |
≥565 |
≥700 |
≥700 |
|
Load on the operating handle |
(N) |
≤28 |
≤28 |
≤28 |
≤40 |
|
N.W. |
(kg) |
16 |
25 |
32.5 |
58 |
|
Packing size |
(cm) |
23×26×124 |
24×27×129 |
26×28×139 |
30×36×159 |
|

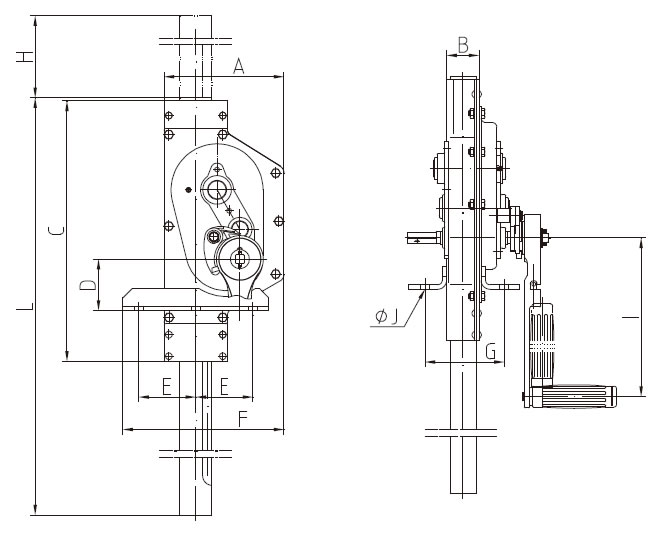

A |
(mm) |
125 |
204 |
189 |
250 |
|
B |
(mm) |
33.5 |
39.5 |
51 |
62.5 |
|
C |
(mm) |
310 |
395 |
410 |
480 |
|
D |
(mm) |
121 |
138 |
81 |
84 |
|
E |
(mm) |
90 |
90 |
90 |
115 |
|
F |
(mm) |
230 |
247 |
254 |
329 |
|
G |
(mm) |
105 |
110 |
125 |
136 |
|
I |
(mm) |
250 |
250 |
250 |
300 |
|
J |
(mm) |
14 |
14 |
14 |
14 |
