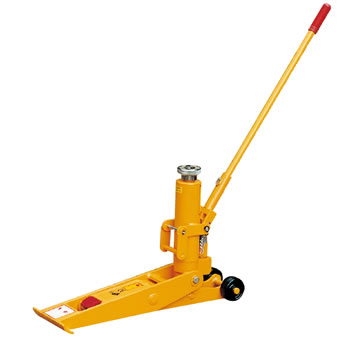

Forklift Jack
Product Model :
|
Forklift Jack HFJ series
* High capacity and rugged construction.
* Extra low pick up point and 2-position lift pad for hard-to reach places under low profile lift trucks.
* Special designed hydraulic pump with German seal kits and overload valve.
* Removable handle and compact size.
* Conforms to CE standard and ANSI standard.
|
Model |
|

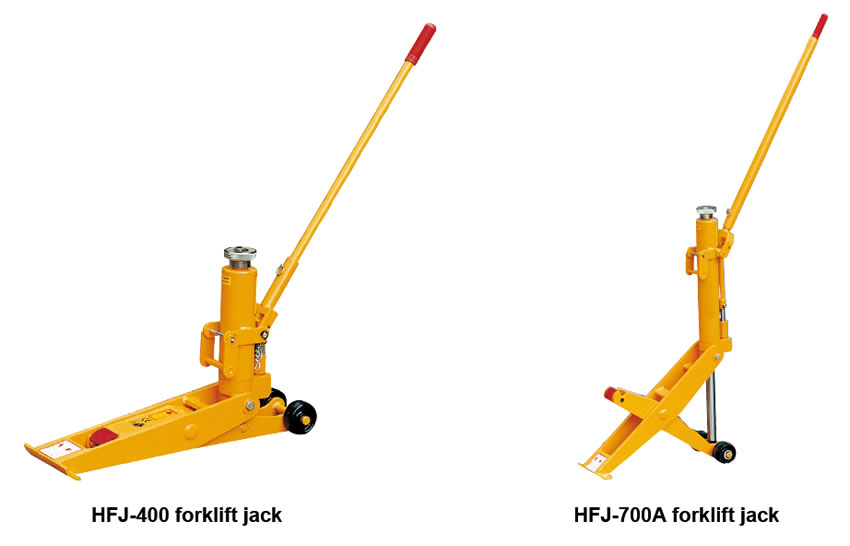

HFJ-400 |
HFJ-700A |
|
Rated Capacity |
(kg/lbs) |
4000/8800 |
7000/15400 |
|
Min. Lifting Height |
(mm) |
65/2-1/2" |
65/2-1/2" |
|
Max. Lifting Height |
(mm) |
406/16" |
420/16-1/2" |
|
Width |
(mm) |
203mm/8" |
250mm/10" |
|
Net Weight |
(kg/lbs) |
33/72.6 |
49/107.80 |
|
Gross Weight |
(kg/lbs) |
35/77 |
53/116.60 |
