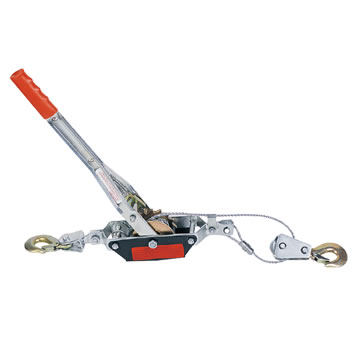

Hand Puller
Product Model :
|
Hand Puller P series
Professional class
* Drum and ratchet wheel are cast as one unit from aluminum alloy.
* Steel hand and frame finished with an galvanized to resist chips and corrosion.
* Spring loaded ratchet control lever permits operation in any position and allows you to easily switch from lifting to lowering.
Conforms to CE safety standard.
|
Model |
Gear |
Tractor Capacity (kg) |
Cable |
Remar |
N.W (kg) |
|
P10SF |
Single |
1000 |
Φ5mm x 1.8mm |
Facilitated |
11.5 (6pcs) |
|
P10DF |
Double |
1000 |
Φ5mm x 1.8mm |
Facilitated |
13 (6pcs) |
|

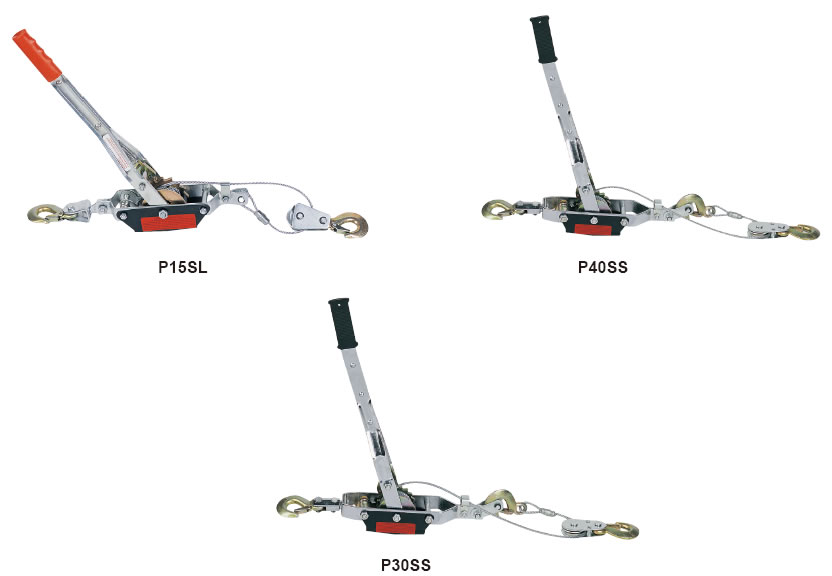

P15SL |
Single |
1500 |
Φ5mm x 2.2mm |
Light |
13 (6pcs) |
|
P15DL |
Double |
1500 |
Φ5mm x 2.2mm |
Light |
16 (6pcs) |
|
P15SC |
Single |
1500 |
Φ5mm x 2.2mm |
Light,Chromeplate |
15 (6pcs) |
|
P20SH |
Single |
2000 |
Φ8mm x 3mm |
High quality,Chromeplate |
18 (16pcs) |
|
P20DC |
Double |
2000 |
Φ8mm x 3mm |
High quality,Chromeplate |
19 (116pcs) |
|
P20SG |
Single |
2000 |
Φ8mm x 3mm |
General |
18 (6pcs) |
|
P20DH |
Double |
2000 |
Φ8mm x 3mm |
High quality |
20 (6pcs) |
|
P30SF |
Single |
3000 |
Φ5.1mm x 1.8mm |
Facilitated |
25 (6pcs) |
|
P30DF |
Double |
3000 |
Φ5.1mm x 1.8mm |
Facilitated |
26 (6pcs) |
|
P30SS |
Single |
3000 |
Φ5.1mm x 1.8mm |
3Hooks,Facilitated |
17.5 (4pcs) |
|
P30DS |
Double |
3000 |
Φ5.1mm x 1.8mm |
3Hooks,Facilitated |
18.5 (4pcs) |
|
P40SH |
Single |
4000 |
Φ6mm x 3mm |
High quality,Chromeplate |
20 (4pcs) |
|
P40DH |
Double |
4000 |
Φ6mm x 3mm |
High quality,Chromeplate |
21.5 (4pcs) |
|
P40SS |
Single |
4000 |
Φ6mm x 3mm |
3Hooks,High quality,Chromeplate |
21.5 (4pcs) |
