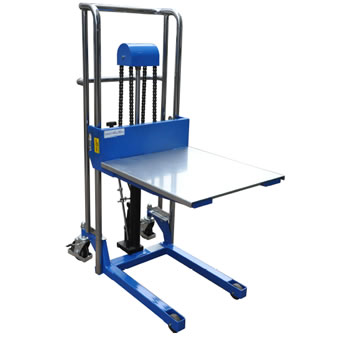

Double-Chain Fork Type Stacker
Product Model :
|
Double-Chain Fork Type Stacker PF . S / PJ . S series
* Double-Chain type, more safe and more reliable.
* Low profile forks can lift pallet easily.
* Platform as option.
* No-marking castor as standard.
* Conforms to EN 1757-1: 2001.
|
Model (Fixed Fork) |
|
PF4120S |
PF4150S |
PF4180S |
|
Model (Adjustable Fork) |
|
PJ4120S |
PJ4150S |
PJ4180S |
|
Capacity |
(kg) |
400 |
400 |
400 |
|
Max. Fork Height |
(mm) |
1200 |
1500 |
1800 |
|
Min. Fork Height |
(mm) |
85 |
85 |
85 |
|
Fork Length |
(mm) |
650 |
650 |
650 |
|
Fixed Fork Width(PF series) |
(mm) |
550 |
550 |
550 |
|
Adjustable Fork Width(PJ series) |
(mm) |
235-500 |
235-500 |
235-500 |
|
Load Roller |
(mm) |
Φ75 |
Φ75 |
Φ75 |
|
Steering Wheel |
(mm) |
Φ125 |
Φ125 |
Φ125 |
|
Pump Strokes to Max.Height |
50 |
63 |
75 |
|
|
Overall Height |
(mm) |
1410 |
1710 |
2020 |
|
Overall Width |
(mm) |
590 |
590 |
590 |
|
Overall Length |
(mm) |
1040 |
1040 |
1040 |
|
Net Weight |
(kg) |
81 |
85 |
90 |
|
Option Platform |
LP20 |
LP20 |
LP20 |
