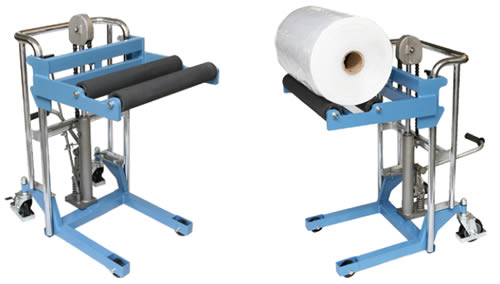

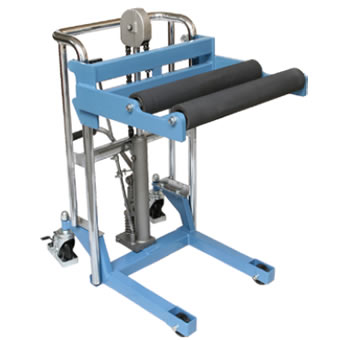

Roller Hand Stacker
Product Model :
|
Roller Hand Stacker PFG series
* Suitable for printing, paper, textile industry
* Roller length could be OEM, max is 800mm
* Suitable for printing, paper, textile industry
* Roller length could be OEM, max is 800mm
|
Model |
|
PFG4085 |
PFG4120 |
PFG4150 |
|
Lifting Capacity |
(kg) |
400 |
400 |
400 |
|
Diameter of Volume |
(mm) |
Φ300~550 |
Φ300~550 |
Φ300~550 |
|
Maximum Length |
(mm) |
≤1200 |
≤1200 |
≤1200 |
|
Lifting Height (Maxima) |
(mm) |
930 |
1305 |
1610 |
|
Lifting Height (Minium) |
(mm) |
130 |
130 |
130 |
|
Roller Dimension |
(mm) |
Φ70×500~800 |
Φ70×500~800 |
Φ70×500~800 |
|
Distance of Roller |
(mm) |
180 |
180 |
180 |
|
Fork Width (Inside/Outside) |
(mm) |
340/500 |
340/500 |
340/500 |
|
Dia of Front Wheel |
(mm) |
Φ75 |
Φ75 |
Φ75 |
|
Dia of Rear Wheel |
(mm) |
Φ125 |
Φ125 |
Φ125 |
|
Overall Dimension |
(mm) |
820×630×965 |
820×630×1295 |
820×630×1620 |
|
Net Weight |
(kg) |
71 |
77 |
85 |
