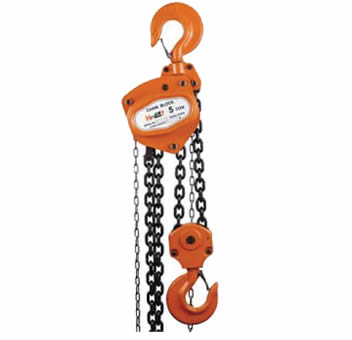

Manual Chain Hoist HSZ-A
Product Model :
  • HSZ-05A
  • HSZ-10A
  • HSZ-15A
  • HSZ-20A
  • HSZ-30A
  • HSZ-50A
  • HS

Manual Chain Hoist     HSZ-A

* Heavy duty and compact design.
* Low effort to lift maximum load.
* Fully forged hooks.
* Extra thick asbestos free friction discs.
* High grade alloy load chain.
* Durable baked enamel paint protection.
* Conform to CE safety standard.


Model

HSZ-05A

HSZ-10A

HSZ-15A

HSZ-20A

HSZ-30A

HSZ-50A

HSZ-100A

HSZ-200A

Capacity

(kg)

500

1000

1500

2000

3000

5000

10000

20000

Standard lift

(m)

2.5

2.5

2.5

3

3

3

3

3

Running test load

(Kn)

7.5

15

22.5

30

45

75

150

300

Effort required to lift rated load

(N)

231

309

320

360

340

414

414

414x2

Strands of load chain

1

1

1

1

2

2

4

8

Load chain diameter

(mm)

6

6

8

8

8

10

10

10

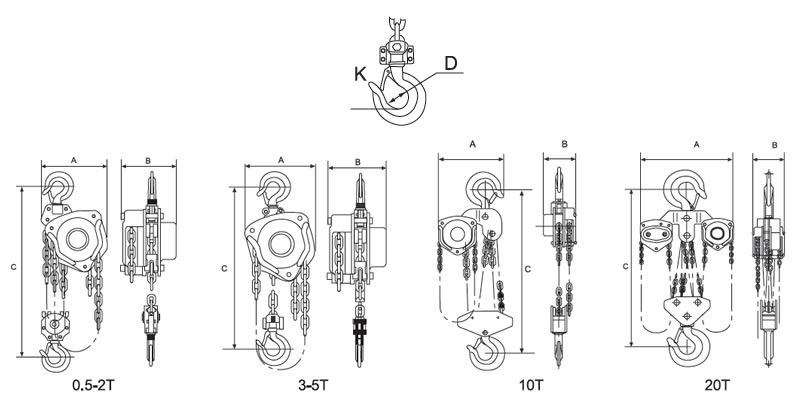

Dimensions

A (mm)

131

140

161

161

161

186

207

215

B (mm)

127

158

174

187

199

253

398

650

C (mm)

270

317

399

414

465

636

798

890

D (mm)

35

35.5

45

42.5

50

64

85

110

K (mm)

30

28

36

33.5

40

50

64

85

Net weight

(kg)

10

12

19

20

27

45.5

83

193

Packing measurement

(cm)

22x15x19.5

23x18x19.5

28x18x19.5

28x21x24

32x21x26

40x21x31

50x41x21

64x38x64
