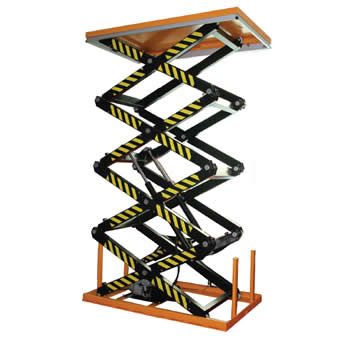

Four Scissor Lift Table
Product Model :
  • HF400
  • HF800

Four Scissor Lift Table     HF series

* Heavy duty design.
* Meet EN1570 norm and ANSI/ASME safety standard.
* High quality power unit.

Standard Safety Features
* Upper platform lifted with aluminum safety bar preventing descent on contact with obstructions.
* Internal power pack equipped with relief valve against overloading and compensated flow valve
for controlled lowering speed.
* Heavy duty cylinders with drainage system and check valve to stop the lift table lowering in case
of hose burst.
* Safety clearance between scissors to prevent trapping during operation.

Other Standard Features
* Self lubricating bushings on pivot points.
* Removable lifting eye to handling and lift table installation.
* Max. Height could be 4210mm.

 Model

HF400

 HF800

 Capacity

 (kg)

400

800

 Lowered Height

 (mm)

600

706

 Raised Height

 (mm)

4140

4210

 Platform Size

 LxW (mm)

 1700x1000

 1700x1000

 Base Frame Size

 (mm)

 1600x1000

 1606x1010

 Raising Time

 (sec)

 30~40

 70~80

 Descending Time

 (sec)

 30~40

 75~85

 Power Pack



 380V/50Hz, AC2.2kw

 Net Weight

 (kg)

548

858
