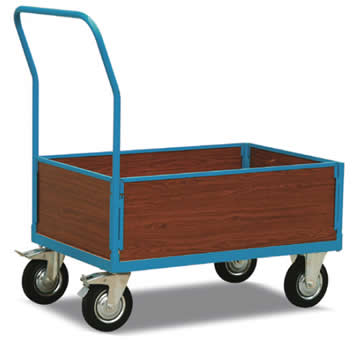

Platform Truck CU series
Product Model :
|
Platform Truck CU series
* The easy way to move 500kg.
* Base Platform and side panels made from plywood.
* Gentle to flooring, minimal traction resistance at initial movement.
* 2 swivel castors with brake and 2 fixed wheels, rubber tyres, Φ200mm. All castors / Wheels fitted with roller bearings.
* Delivered flat packed for easy bolt-on assembly.
|

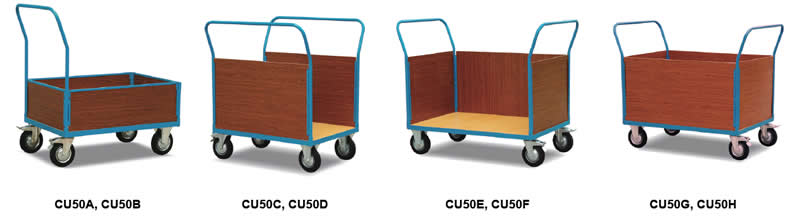

Model |
Max.Capacity |
Platform Size |
Platform Height |
Castor/Wheel |
Overall Size |
Net Weight |
|
(kg) |
L× W (mm) |
(mm) |
Dia.× Width (mm) |
L×w×H (mm) |
(kg) |
|
|
CU50A |
500 |
1000×700 |
270 |
Φ200×45 |
1100×700×1170 |
44 |
|
CU50B |
500 |
1200×800 |
270 |
Φ200×45 |
1300×800×1170 |
46 |
|
CU50C |
500 |
1000×700 |
270 |
Φ200×45 |
1000×930×1170 |
47 |
|
CU50D |
500 |
1200×800 |
270 |
Φ200×45 |
1200×1030×1170 |
50 |
|
CU50E |
500 |
1000×700 |
270 |
Φ200×45 |
1200×700×1170 |
50 |
|
CU50F |
500 |
1200×800 |
270 |
Φ200×45 |
1400×800×1170 |
53 |
|
CU50G |
500 |
1000×700 |
270 |
Φ200×45 |
1200×700×1170 |
56 |
|
CU50H |
500 |
1200×800 |
270 |
Φ200×45 |
1400×800×1170 |
60 |
