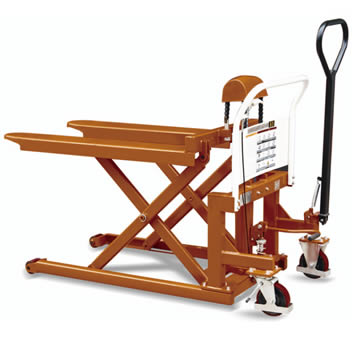

Skid Lifter
Product Model :
|
Skid Lifter SL/PL series
Correctly position skids and work surfaces to minimize back strain
* Combination of pallet truck and lift table.
* Ideal for your loading and unloading operations.
* Continuous-welded heavy steel frame and forks handle weighty loads with ease.
* Easy-to-use control lever, plus two parking brakes on steering wheels increase safety.
* A foot-operated pedal for easier and faster lifting.
* A steering handle on 1000kg models for easier and comfortable turning.
* Conforms to EN 1757-4.
|
Model |
|
SL50S |
SL50L |
SL100S |
SL100L |
PL50S |
PL50L |
PL100S |
PL100L |
|
Type |
without platform |
with platform |
|||||||
|
Capacity |
(kg) |
500 |
500 |
1000 |
1000 |
500 |
500 |
1000 |
1000 |
|

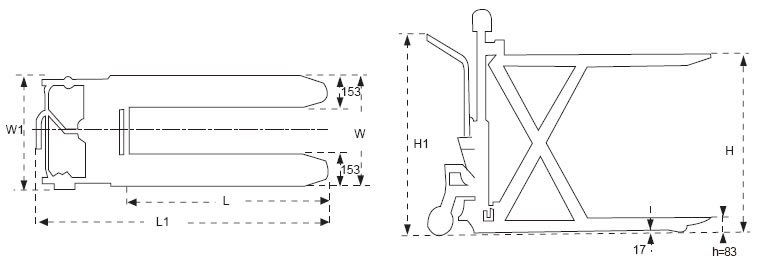

Max. Fork Height |
H (mm) |
830 |
830 |
830 |
830 |
833 |
833 |
833 |
833 |
|
Min. Fork Height |
h (mm) |
85 |
85 |
85 |
85 |
88 |
88 |
88 |
88 |
|
Fork/Platform Length |
L (mm) |
1115 |
1115 |
1115 |
1115 |
1115 |
1115 |
1115 |
1115 |
|
Fork/Platform Width |
W (mm) |
526 |
690 |
526 |
690 |
538 |
703 |
538 |
703 |
|
Pump Strokes to Max. Lift |
45 |
45 |
75 |
75 |
45 |
45 |
75 |
75 |
|
|
Front Roller |
(mm) |
Ø70x68 polyurethane |
Ø70x68 polyurethane |
||||||
|
Steering Wheel |
(mm) |
Ø150x40 polyurethane |
Ø150x40 polyurethane |
||||||
|
Overall Length |
L1 (mm) |
1550 |
1550 |
1640 |
1640 |
1550 |
1550 |
1640 |
1640 |
|
Overall Width |
W1 (mm) |
526 |
691 |
687 |
852 |
538 |
703 |
693 |
858 |
|
Overall Height |
H1 (mm) |
1012 |
1012 |
1307 |
1307 |
1012 |
1012 |
1307 |
1307 |
|
Net Weight |
(kg) |
107 |
116 |
135 |
138 |
122 |
136 |
150 |
158 |
