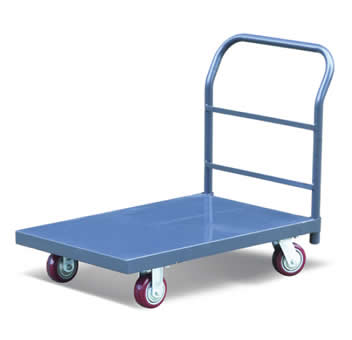

Steel Platform Truck YF/XF/ZF series
Product Model :
|
Steel Platform Truck YF/XF/ZF series
* All welded heavy duty 14 gauge steel decks, reinforced with internal.
* Longitudinal stiffening members for extra strength.
* Removable pipe handle.
* Bolt-on casters are double ball race, two swivel and two rigid.
* Durable baked gray enamel finish.
* Optional Ergo Handle helps to reduce strain on the back, wrists and arms.
|
Model |
Capacity |
Platform Size |
Platform Height |
Handle Height |
Caster Wheel |
Caster Type |
N.W. |
|
(kg/lbs) |
mm/inch) |
(mm/inch) |
(mm/inch) |
(mm/inch) |
(kg/lbs) |
||
|
YF2436 |
450/1000 |
610×915/24×36 |
215/8.5 |
840/33 |
125×50/5×2 |
Poly |
30/66 |
|
YF2448 |
450/1000 |
610×1220/24×48 |
215/8.5 |
840/33 |
125×50/5×2 |
Poly |
35/77 |
|
YF3048 |
450/1000 |
760×1220/30×48 |
215/8.5 |
840/33 |
125×50/5×2 |
Poly |
40/88 |
|
YF3060 |
450/1000 |
760×1525/30×60 |
215/8.5 |
840/33 |
125×50/5×2 |
Poly |
45/99 |
|
YF3672 |
450/1000 |
915×1830/36×72 |
215/8.5 |
840/33 |
125×50/5×2 |
Poly |
56/123 |
|
XF2436 |
900/2000 |
610×915/24×36 |
240/9.5 |
865/34 |
150×50/6×2 |
Poly |
31.5/70 |
|
XF2448 |
900/2000 |
610×1220/24×48 |
240/9.5 |
865/34 |
150×50/6×2 |
Poly |
36.5/80 |
|
XF3048 |
900/2000 |
760×1220/30×48 |
240/9.5 |
865/34 |
150×50/6×2 |
Poly |
40.5/90 |
|
XF3060 |
900/2000 |
760×1525/30×60 |
240/9.5 |
865/34 |
150×50/6×2 |
Poly |
46.5/103 |
|
XF3672 |
900/2000 |
915×1830/36×72 |
240/9.5 |
865/34 |
150×50/6×2 |
Poly |
57.5/127 |
|
ZF2436 |
540/1200 |
610×915/24×36 |
280/11 |
905/37 |
200×50/8×2 |
Rubber |
39/86 |
|
ZF2448 |
540/1200 |
610×1220/24×48 |
280/11 |
905/37 |
200×50/8×2 |
Rubber |
44/97 |
|
ZF3048 |
540/1200 |
760×1220/30×48 |
280/11 |
905/37 |
200×50/8×2 |
Rubber |
48/106 |
|
ZF3060 |
540/1200 |
760×1525/30×60 |
280/11 |
905/37 |
200×50/8×2 |
Rubber |
54/120 |
|
ZF3672 |
540/1200 |
915×1830/36×72 |
280/11 |
905/37 |
200×50/8×2 |
Rubber |
65/143 |
