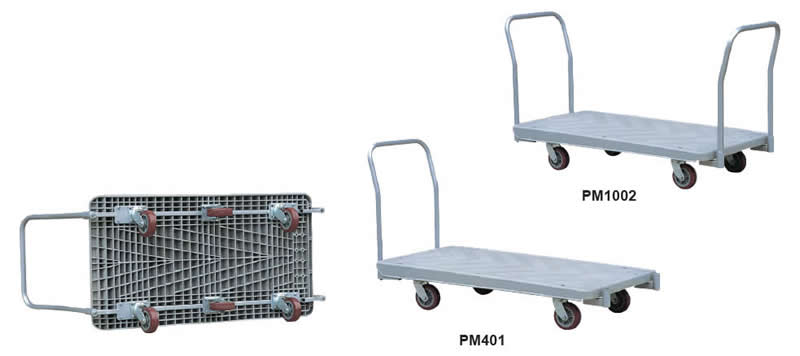

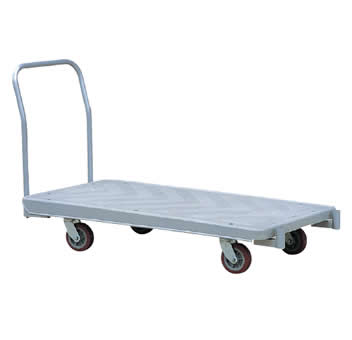

Plastic Platform Truck PM series
Product Model :
  • PM401
  • PM402
  • PM1001
  • PM1002
  • PM1501
  • PM1502

Plastic Platform Truck     PM series

* Capacity 400kg, 1000kg, 1500kg for evenly distributed load.
* Less hassle than metal carts, will not rust, discolor or warp.
* Maintenance free and easy to clean.
* Honeycomb construction is reinforced for longer lift.
* Extra square steel tube underneath of platform to reinforce the truck.
* Heavy duty castor wheel: Φ150×40mm, polyurethane.
* 400kg and 1000kg capacity truck have two rigid wheels, two swivel wheels.
* 1500kg have two rigid wheels, four swivel wheels.
* Removable steel handle.

Model

PM401

PM402

PM1001

PM1002

PM1501

PM1502

Capacity

(kg)

400

400

1000

1000

1500

1500

No.of Hand

1

2

1

2

1

2

Platform Size

L×H (mm)

1510×750

1510×750

1510×750

1510×750

1510×750

1510×750

Platform Size

L×W (mm)

190

190

190

190

190

190

Handle Height

(mm)

965

965

965

965

965

965

Overall Dimensions

(mm)

1705×765×965

1780×765×965

1705×765×965

1780×765×965

1705×765×965

1780×765×965

Net Weight

(kg)

58

60

62

64

67

69
