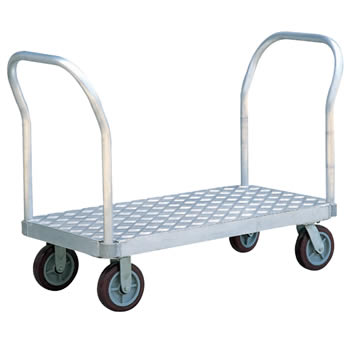

Aluminum Platform Truck
Product Model :
|
Aluminum Platform Truck AF/BF/CF series
1200-3000lbs capacity
* Ideally suited for hot, wet applications.
* Lightweight, corrosion-resistant, aluminum platform trucks have a clean, handsome appearance and are built for heavy-duty use.
* Use them in the front office, stock room, warehouse, dock area, or laboratory.
* Unitized box frame is made of high strength all welded aluminum channel with heavy duty deck.
* Corner stockets at both ends allow handles to be used on either or both ends of truck.
* Two swivel and two rigid casters for smooth mobility.
* Additional handle as option.
* Mode H24 for platform 24×36’’, 24×48’’
* Mode H30 for platform 30×48’’, 30×60’’
* Mode H36 for platform 36×72’’
|
Model |
Capacity |
Platform Size |
Platform Height |
Handle Height |
Castor Wheel |
Caster |
Net Weight |
|
(kg/lbs) |
(mm/inch) |
(mm/inch) |
(mm/inch) |
(mm/inch) |
Type |
(kg/lbs) |
|
|
AF2436 |
900/2000 |
610×915/24×36 |
236/9 |
910/35.8 |
125×50/5×2 |
Poly |
20/44 |
|
AF2448 |
900/2000 |
610×1220/24×48 |
236/9 |
910/35.8 |
125×50/5×2 |
Poly |
25.5/56.1 |
|
AF3048 |
900/2000 |
760×1220/30×48 |
236/9 |
910/35.8 |
125×50/5×2 |
Poly |
28/61.6 |
|
AF3060 |
900/2000 |
760×1525/30×60 |
236/9 |
910/35.8 |
125×50/5×2 |
Poly |
33/72.6 |
|
AF3672 |
900/2000 |
915×1830/36×72 |
236/9 |
910/35.8 |
125×50/5×2 |
Poly |
38.5/84.7 |
|

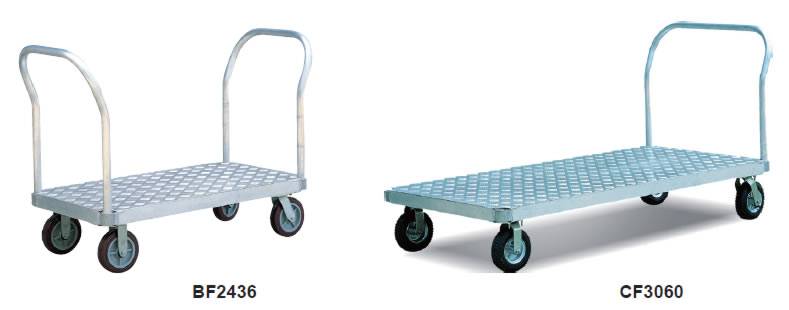

BF2436 |
1350/3000 |
610×915/24×36 |
260/10.2 |
940/37 |
150×50/6×2 |
Poly |
21/46.2 |
|
BF2448 |
1350/3000 |
610×1220/24×48 |
260/10.2 |
940/37 |
150×50/6×2 |
Poly |
26.5/58.3 |
|
BF3048 |
1350/3000 |
760×1220/30×48 |
260/10.2 |
940/37 |
150×50/6×2 |
Poly |
29/63.8 |
|
BF3060 |
1100/2400 |
760×1525/30×60 |
260/10.2 |
940/37 |
150×50/6×2 |
Poly |
34/74.8 |
|
BF3672 |
1100/2400 |
915×1830/36×72 |
260/10.2 |
940/37 |
150×50/6×2 |
Poly |
39.5/86.9 |
|
CF2436 |
550/1200 |
610×915/24×36 |
300/12 |
980/38.6 |
200×50/8×2 |
Pneumatic |
24/52.8 |
|
CF2448 |
550/1200 |
610×1220/24×48 |
300/12 |
980/38.6 |
200×50/8×2 |
Pneumatic |
29.5/64.9 |
|
CF3048 |
550/1200 |
760×1220/30×48 |
300/12 |
980/38.6 |
200×50/8×2 |
Pneumatic |
32/70.4 |
|
CF3060 |
550/1200 |
760×1525/30×60 |
300/12 |
980/38.6 |
200×50/8×2 |
Pneumatic |
37/81.4 |
|
CF3672 |
550/1200 |
915×1830/36×72 |
300/12 |
980/38.6 |
200×50/8×2 |
Pneumatic |
42.5/93.5 |
