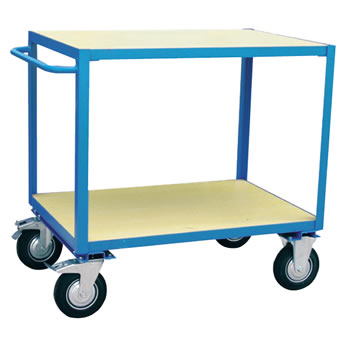

General Purpose Trolley
Product Model :
|

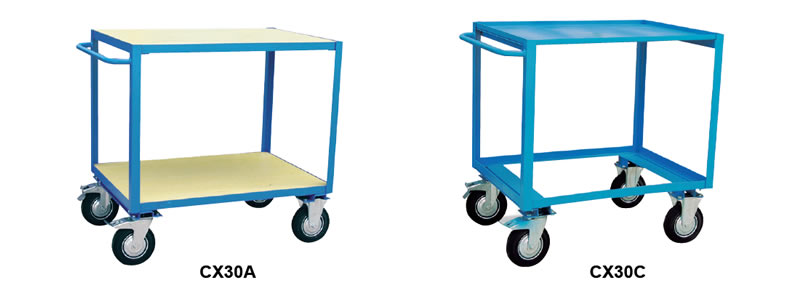

General Purpose Trolley CX series
* With watertight shelf trays.
* 2 swivel castors with brakes and 2 fixed wheels, rubber tyres, rollers bearings.
* Standard model powder-coated blue RAL5012.
.jpg)
|
Model |
|
CX25 |
|
Max.Capacity |
(kg) |
250 |
|
Shelf Size |
L×W (mm) |
900×500 |
|
Lower Shelf Height |
(mm) |
280 |
|
Top Shelf Height |
(mm) |
850 |
|
Castor/Wheel |
Dia×Width (mm) |
Φ125×34 |
|
Overall Size |
L×W×H (mm) |
1000×500×870 |
|
Net Weight |
(kg) |
44 |
|
Model |
CX35A |
CX35B |
|
|
Max.Capacity |
(kg) |
350 |
350 |
|
Shelf Size |
L×W (mm) |
900×500 |
900×500 |
|
Base Shelf Height |
(mm) |
260 |
260 |
|
Top Shelf Height |
(mm) |
920 |
1110 |
|
The Height between base & the second shelf |
(mm) |
300 |
400 |
|
The Height between second & the top shelf |
(mm) |
320 |
400 |
|
Castor/Wheel |
Dia×Width (mm) |
Φ160×39 |
Φ160×39 |
|
Overall Size |
L×W×H (mm) |
1000×500×940 |
1000×500×1130 |
|
Net Weight |
(kg) |
58 |
62 |
