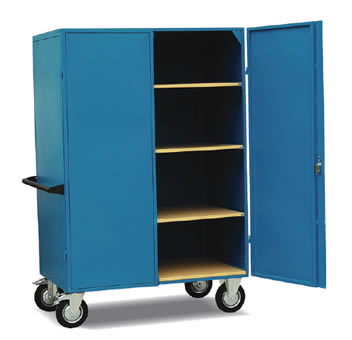

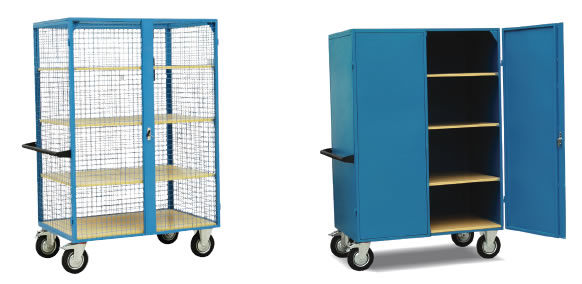

Storage Trolley SR series
Product Model :
|
Storage Trolley SR series
* Ideal for intermediate storage and transportation.
* Mesh size 50×50mm.
* Base made from moulded chipboard..
* 2 swivel castors with brakes, 2 fixed wheels, rubber tyres, Φ200mm, roller bearings.
* Standard model powder-coated blue RAL5012.
* Can add three shelves in the trolley.
* Shelves as option. Every shelf can load 50kg.
|
Model |
|
SR500 |
SR500A |
|
Max.Capacity |
(kg) |
500 |
500 |
|
Soleplate Size |
L×W (mm) |
1150×750 |
1150×750 |
|
Height of the Base |
(mm) |
270 |
270 |
|
Height of the Platform |
(mm) |
630/1050/1440 |
630/1050/1440 |
|
Castpr/Wheel |
Dia×Width (mm) |
Φ200×45 |
Φ160×39 |
|
Overall Size with Drawbar |
(mm) |
1270×750×1790 |
1270×750×1790 |
|
Net Weight |
(kg) |
54 (with 3 shelves) |
122 (with 3 shelves) |
