Telescopic Fork Mounted Jibs
Product Model :
  • TLB01

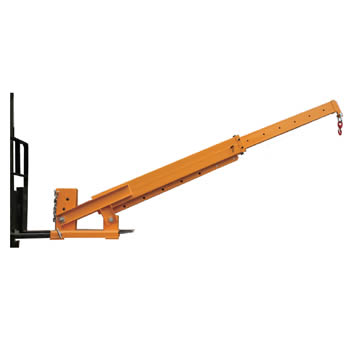

Telescopic Fork Mounted Jibs   TLB01

* Capacity: 596kg-3217kg(depends on jib length)
* Jib Position: 690mm-3726mm
* Jib angle is adjustable, max. tilt angle is 26 degree
* Fork Pockets: 180mm x 74mm

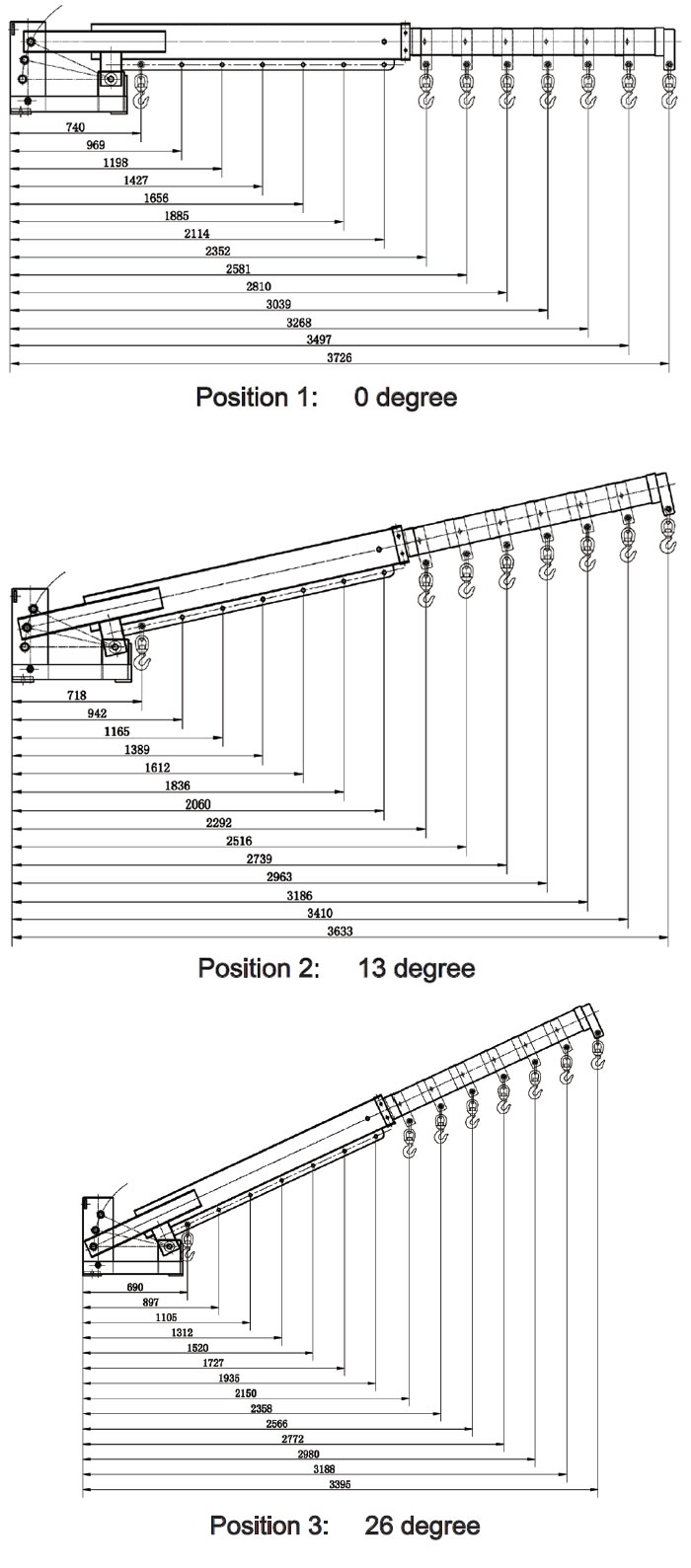

Position 1:  0 degree

Length Positions (mm)

740

969

1198

1427

1656

1885

2114

2352

2581

2810

3039

3268

3497

3726

Capacity (kg)

3000

2291

1853

1556

1341

1178

1050

944

860

790

730

679

635

596


Position 2:  13 degree

Length Positions (mm)

718

942

1165

1389

1612

1836

2060

2292

2516

2739

2963

3186

3410

3633

Capacity (kg)

3092

2357

1906

1598

1377

1209

1078

969

882

811

749.3

697

651

611


Position 3:  26 degree

Length Positions (mm)

690

897

1105

1312

1520

1727

1935

2150

2358

2566

2772

2980

3188

3395

Capacity (kg)

3217

2475

2009

1692

1460

1285

1147

1032

941

865

800.8

745

696

654
