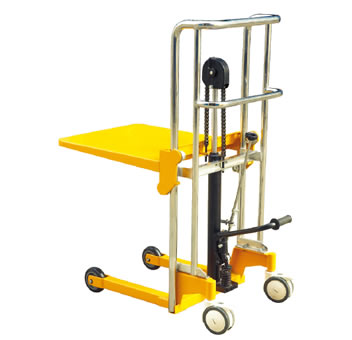

Platform Stacker
Product Model :
|
Platform Stacker PS.A series
* Simple and Easy Operation
Lifting Movement via collapsible foot pedal.
Sensitive lowering through sinking valve.
Hand push drive.
Overload protection via pressure valve.
* Safe Operation and secure Working Conditions
Stable chassis with 2 frame rollers and 2 steering rollers.
* Long Service Lift.
Robust construction.
Hard chromium plated frame.
Hardened chromium plated ram.
* Effortless Movement.
Ball bearing rollers.
Polyurethane rollers.
* No-marking castor as standard.
* Conforms to EN 1757-1:2001.
|

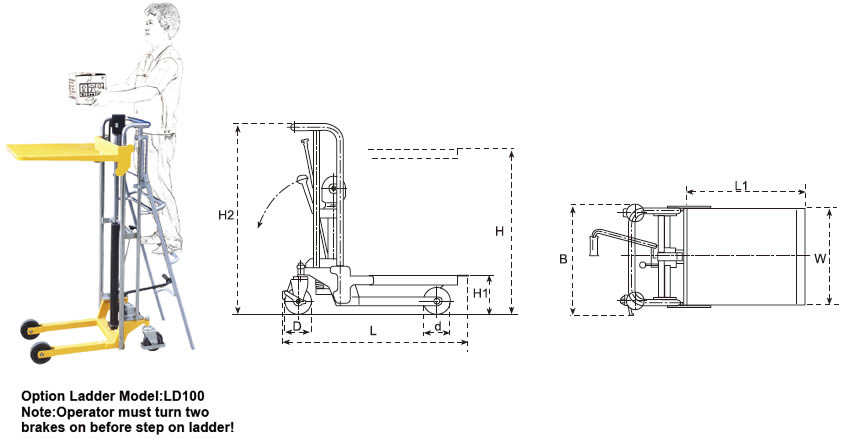

Model |
|
PS2085A |
PS2120A |
PS4085A |
PS4120A |
PS4150A |
|
Capacity |
(kg) |
200 |
200 |
400 |
400 |
400 |
|
Max. platform Height |
H (mm) |
850 |
1200 |
850 |
1200 |
1500 |
|
Min. Platform Height |
H1 (mm) |
200 |
200 |
200 |
200 |
200 |
|
Platform Length |
L1 (mm) |
600 |
600 |
650 |
650 |
650 |
|
Platform Width |
W (mm) |
500 |
500 |
550 |
550 |
550 |
|
Total Length |
L (mm) |
940 |
940 |
1040 |
1040 |
1040 |
|
Total Width |
B (mm) |
560 |
560 |
590 |
590 |
590 |
|
Total Height |
H2 (mm) |
960 |
1310 |
970 |
1310 |
1610 |
|
Steering Rollers-diameter |
D (mm) |
Φ125 |
Φ125 |
Φ150 |
Φ150 |
Φ150 |
|
Frame Rollers-diamerter |
d (mm) |
Φ125 |
Φ125 |
Φ150 |
Φ150 |
Φ150 |
|
Pump Strokes to Max.Height |
14 |
21 |
30 |
45 |
58 |
|
|
Net Weight |
(kg) |
53 |
58 |
72 |
78 |
83 |
|
Noise-free Castor |
O |
O |
O |
O |
O |
|
| O=Option |
