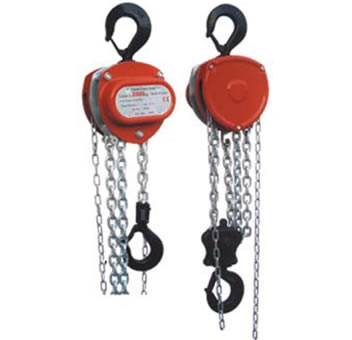

Manual Chain Hoist HSZ-B
Product Model :
|
Manual Chain Hoist HSZ-B
* Robust all-steel construction.
* Top and bottom hooks are fitted with safely latches as standard.
* With brake mechanism.
* Double ratchet pawls.
* Hand chain cover and slots accurately guide the hand chain.
* Stripper ensure accurate alignment of the load chain over the load sheave.
* Powder metal bushing.
* Conform to CE safety standard.
|
Model |
|
HSZ-05B |
HSZ-10B |
HSZ-20/1B |
HSZ-20/2B |
HSZ-30/1B |
HSZ-30/2B |
HSZ-50B |
HSZ-100B |
|
Capacity |
(kg) |
500 |
1000 |
2000 |
2000 |
3000 |
3000 |
5000 |
10000 |
|
Standard lift |
(m) |
3 |
3 |
3 |
3 |
3 |
3 |
3 |
3 |
|
Running test load |
(Kn) |
7.3 |
14.7 |
29.4 |
29.4 |
44 |
44 |
73.5 |
147 |
|
Effort required to lift rated load |
(N) |
157 |
314 |
323 |
314 |
333 |
323 |
412 |
441 |
|
Strands of load chain |
1 |
1 |
1 |
2 |
1 |
2 |
2 |
4 |
|
|
Load chain diameter |
(mm) |
6 |
6 |
8 |
6 |
10 |
8 |
10 |
10 |
|

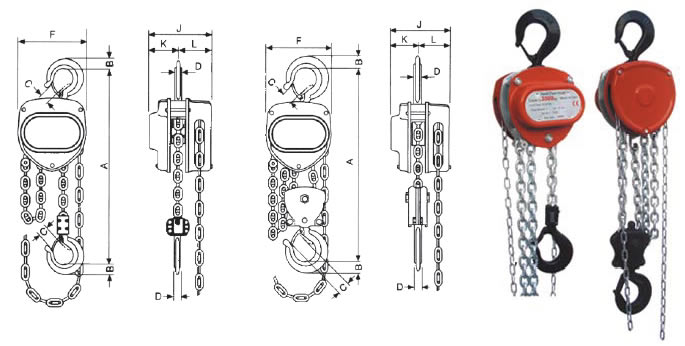

Dimensions |
Amin. (mm) |
295 |
345 |
450 |
440 |
530 |
530 |
620 |
735 |
|
B (mm) |
16 |
21 |
37 |
27 |
46 |
35 |
45 |
60 |
|
|
C (mm) |
22 |
27 |
37 |
30 |
46 |
37 |
46 |
52 |
|
|
D (mm) |
11 |
15 |
25 |
20 |
29 |
24 |
30 |
40 |
|
|
F(mm) |
125 |
147 |
183 |
147 |
215 |
183 |
215 |
360 |
|
|
J (mm) |
111 |
125 |
142 |
125 |
163 |
142 |
163 |
163 |
|
|
K (mm) |
52 |
57 |
68 |
57 |
79 |
68 |
79 |
79 |
|
|
L(mm) |
59 |
68 |
74 |
68 |
84 |
74 |
84 |
84 |
|
|
Net weight |
(kg) |
9 |
11 |
18 |
15 |
28 |
24 |
39 |
70 |
