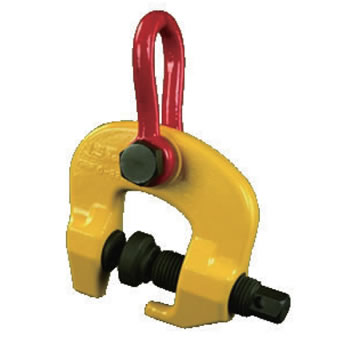

Screw Cam Clamp LRC series
Product Model :
  • LRC1.5
  • LRC3

Screw Cam Clamp   LRC series

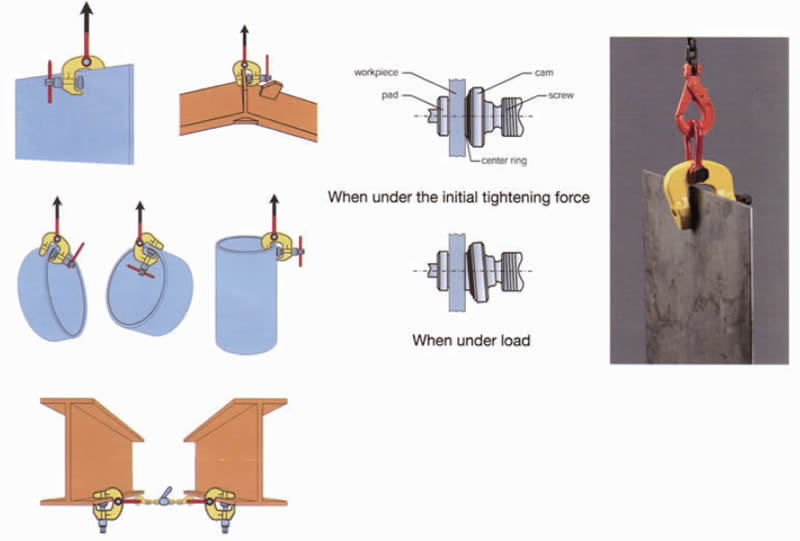

* Suitable for lifting of a large variety of different shaped steel, ranging from steel plates and structured steel to curved and spherical shaped steels.
* They are designed to be used in conjunction with ratchet lever hoists to align steel structures or fabrications. They are ideally suited for the construction industry.
* The STC screw clamp is fitted with a moveable cam on the thread spindle which provides a powerful clamping force on the workpiece.
* The articulated lifting eye ensures an effective clamping force in every position.
* The main body is a baked-on finished.




Model

WLL
(tonnes)

Jaw Opening
(mm)

Weight
(kg)

LRC1.5

1.5

0-32

4

LRC3

3.0

0-50

6
