Trailer Stabilizer Jacks
Product Model :
|
Trailer Stabilizer Jacks TJ series
A “must” for safely loading and unloading trailers!
Meet OSHA Specification with our wide variety of Trailer Stabilizer Jacks OSHA 1910.
178(k)(3) states “Fixed jacks may be necessary to support a semi-trailer and prevent upending
during the loading or unloading when the trailer is not coupled to a tractor”.

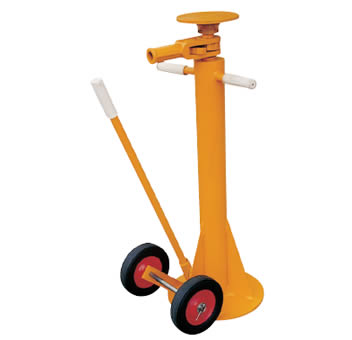

A. Spin-Top Jacks
* ACME thread screw design.
* Reflective collar and safety yellow painting.
|
Model |
|
TJ50 |
TJ50A |
TJ50B |
TJ50C |
TJ50D |
|
Service Range |
(in.) |
391/2-51 |
39-51 |
39-51 |
45-57 |
45-57 |
|
Static Capacity |
(lbs/tonne) |
100000/45 |
100000/45 |
100000/45 |
80000/36 |
100000/45 |
|
Lifting Capacity |
(lbs/tonne) |
40000/18 |
40000/18 |
50000/22.7 |
40000/18 |
40000/18 |
|
Cap Size |
8"diameter |
7.5"diameter |
8"diameter |
8"diameter |
8"diameter |
|
|
Base Plate |
14"triangular |
16"triangular |
16"triangular |
16"triangular |
16"triangular |
|
|
Wheel Dia |
10"semi-pneumatic |
10"solid rubber |
10"solid rubber |
10"solid rubber |
10"solid rubber |
|
|
Net Weight |
(lbs/kg) |
125/57 |
110/50 |
125/57 |
115/52 |
130/59 |
