Trailer Stabilizer Jacks
Product Model :
|
Trailer Stabilizer Jacks TJ series
A “must” for safely loading and unloading trailers!
Meet OSHA Specification with our wide variety of Trailer Stabilizer Jacks OSHA 1910.
178(k)(3) states “Fixed jacks may be necessary to support a semi-trailer and prevent upending
during the loading or unloading when the trailer is not coupled to a tractor”.

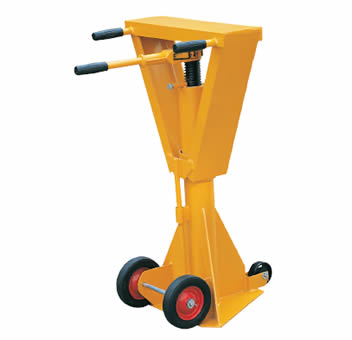

C. Ratchet Beam Jacks
* Ratchet screw design, reversible.
* Reflective collar and safety yellow painting.
|
Model |
|
TJ60 |
TJ60A |
|
Service Range |
(in.) |
391/2-51 |
391/2-51 |
|
Static Capacity |
(lbs/tonne) |
100000/45 |
80000/36 |
|
Lifting Capacity |
(lbs/tonne) |
50000/22.7 |
40000/18 |
|
Cap Size |
6"wide x 24"long |
6"wide x 24"long |
|
|
Base Plate |
15"triangular |
16"triangular |
|
|
Wheel Dia |
8"semi-pneumatic,4"semi-steel |
10"solid rubber,4"semi-steel |
|
|
Net Weight |
(lbs/kg) |
195/88.5 |
180/82 |
