Platform Stacker
Product Model :
|

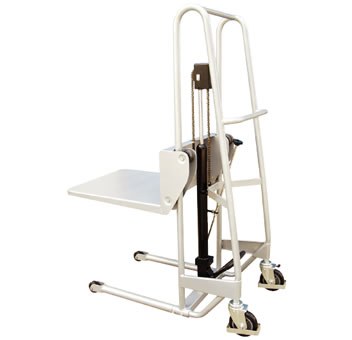

Platform Stacker NS series
Quick lifting, highly manoeuvarable!
* A range of highly manoeuvarable, Lightweight lifts, designed to take the strain out of any lifting job from ground level to over shoulder height.
* Heavy duty design.
Ideal for use in narrow aisles and confined spaces. Perfect for all applications from pharmaceutical to catering, from packing line to food processing, from warehouse to office, kitchens, laboratories, retail outlets, etc…
* Quick lift pump by a pedal provides high efficiency.
* No-marking castor as standard.
* Conforms to EN1757.
|
Model |
|
NS2094 |
NS2010 |
NS4012A |
NS4012B |
|
Capacity |
(kg) |
200 |
200 |
400 |
400 |
|

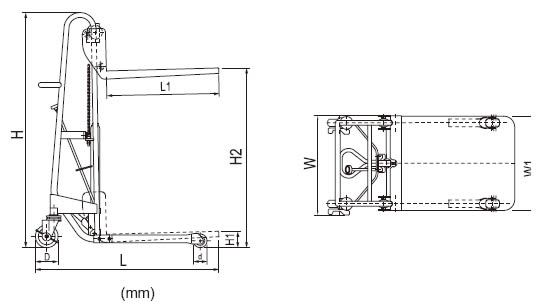

Max. platform Height |
H2 (mm) |
940 |
1010 |
1210 |
1270 |
|
Min. Platform Height |
H1 (mm) |
80 |
150 |
90 |
150 |
|
Platform Length |
L1 (mm) |
620 |
620 |
670 |
670 |
|
Platform Width |
W1 (mm) |
520 |
520 |
590 |
590 |
|
Total Width |
W (mm) |
560 |
560 |
620 |
620 |
|
Total Length |
L (mm) |
1087 |
1087 |
119 |
1190 |
|
Total Height |
H (mm) |
1290 |
1315 |
1610 |
1635 |
|
Steering Rollers-diameter |
D (mm) |
Φ125 |
Φ125 |
Φ125 |
Φ125 |
|
Frame Rollers-diamerter |
d (mm) |
Φ75 |
Φ125 |
Φ75 |
Φ125 |
|
Pump Stokes to Max.Height |
Full Load |
29 |
29 |
63 |
63 |
|
NO Load |
29 |
29 |
20 |
20 |
|
|
Net Weight |
(kg) |
56 |
58 |
81 |
83 |
| Quick lift available for NS2094,NS2010 on inquiry. | |||||
