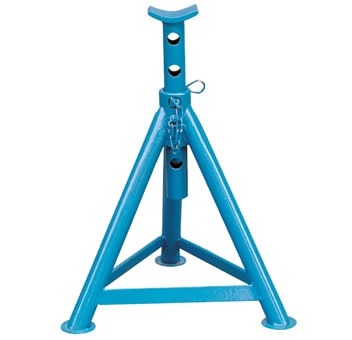

Axle Stand SN series
Product Model :
|
Axle Stand SN series
For all professional applications!
* Capacity from 1500kg to 16000kg.
* Heavy duty structure, high stability and long life.
* According to safety regulations, every vehicle must be supported by stands.
|
Model |
|
SN15A |
SN15B |
SN30 |
SN50 |
SN80A |
SN80B |
SN160A |
SN160B |
SN160C |
|
Capacity |
(kg) |
1500 |
1500 |
3000 |
5000 |
8000 |
8000 |
16000 |
16000 |
16000 |
|

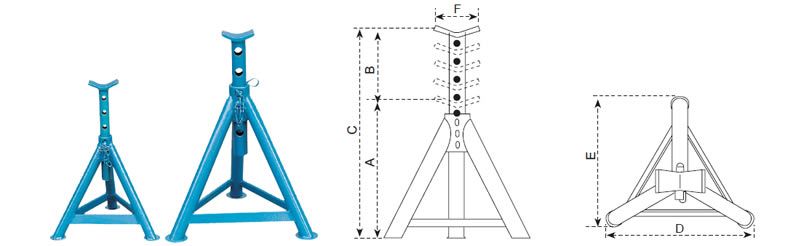

Min. Height |
A (mm) |
260 |
420 |
320 |
375 |
380 |
580 |
295 |
435 |
675 |
|
Max. Height |
B (mm) |
140 |
240 |
210 |
200 |
220 |
385 |
140 |
280 |
420 |
|
Fully Extended |
C (mm) |
400 |
660 |
530 |
575 |
600 |
965 |
435 |
715 |
1095 |
|
Pitch |
(mm) |
38 |
65 |
42 |
50 |
55 |
75 |
70 |
70 |
70 |
|
Top |
F (mm) |
70 |
70 |
70 |
70 |
125 |
125 |
130 |
130 |
130 |
|
Distance of Legs |
D (mm) |
270 |
415 |
335 |
385 |
400 |
596 |
321 |
480 |
705 |
|
Distance of Legs |
E (mm) |
240 |
355 |
250 |
325 |
350 |
520 |
272 |
420 |
605 |
|
Net weight |
(kg) |
2 |
3.5 |
4.5 |
5 |
5.4 |
9 |
13.2 |
20 |
30 |
