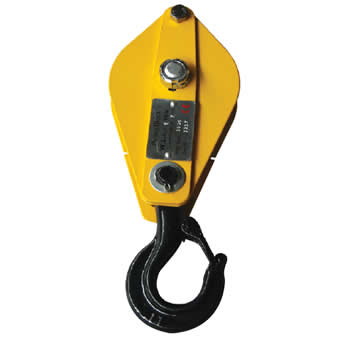

Pulley Blocks MPB series
Product Model :
|
Pulley Blocks MPB series
* One side of pulley blocks is hinged and can be opened for easy and quick positioning of the rope on the sheave
* Changing the direction of a rope with a cast steel sheave
* Swinging the hook in the direction of pull securely locks the pulley block
* High quality cast steel sheaves have machined grooves
* Manufactured according to prEN 13157:2003,machinery directive 98/37/EC

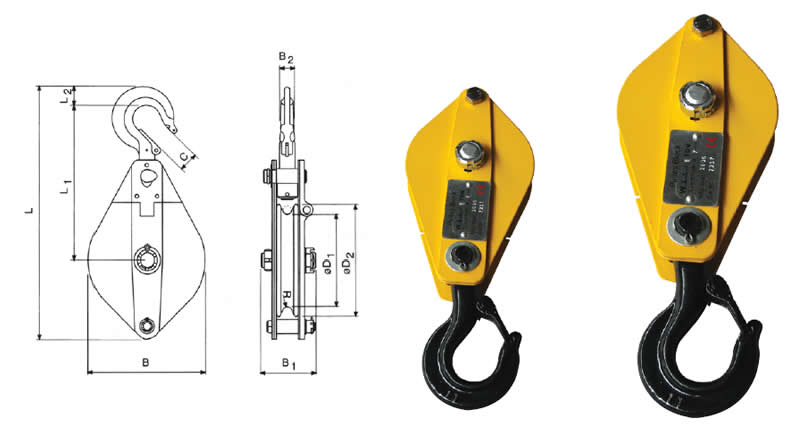

.jpg)
|
Model |
Working Load |
Hook Hatch |
Rope |
Diameter (mm) |
Net Weight |
|||||||||
|
B |
B1 |
B2 |
C |
D1 |
D2 |
L |
L1 |
L2 |
R |
|||||
|
MPB10 |
1000 |
23 |
Φ7 |
118 |
76 |
17 |
23 |
85 |
105 |
305 |
200 |
23 |
4 |
3.3 |
|
MPB20 |
2000 |
27 |
Φ13 |
199 |
92 |
24 |
27 |
150 |
190 |
425 |
263 |
30 |
7 |
8.9 |
|
MPB32 |
3200 |
31 |
Φ15 |
230 |
108 |
28 |
31 |
180 |
220 |
496 |
295 |
40 |
9 |
15.5 |
|
MPB64 |
6400 |
42 |
Φ18 |
270 |
116 |
35 |
42 |
210 |
260 |
655 |
375 |
47 |
10 |
26.5 |
