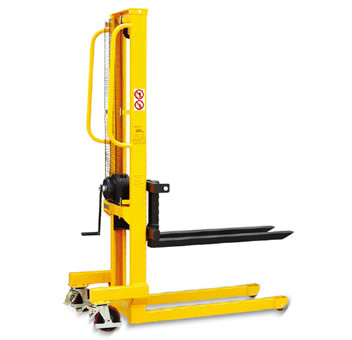

Winch Stacker
Product Model :
|
Winch Stacker WS series
* Compact and service free design.
* Unique design of winch for easier and safe lifting.
* Heavy duty “C” section mast.

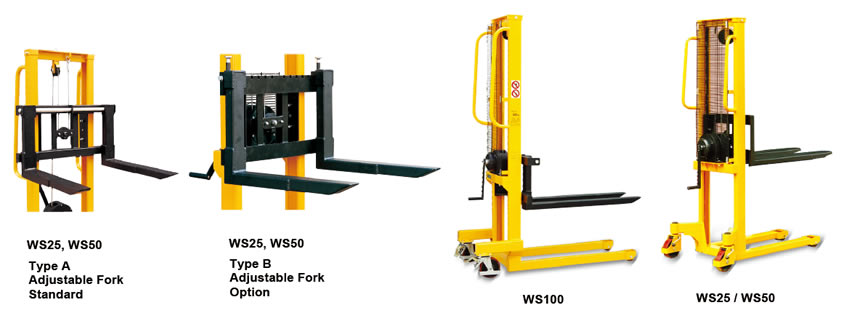

* Adjustable fork width from 160mm to 690mm (WS25,WS50).
* Two parking brakes on steering wheels.
* Conforms to EN1757-1:2001.
|
Model |
|
WS25 |
WS50 |
WS100 |
|
Capacity |
(kg) |
250 |
500 |
1000 |
|
Load Centre |
(mm) |
400 |
500 |
575 |
|
Max. Fork Height |
(mm) |
1560 |
1560 |
1500 |
|
Lowered Fork Height |
(mm) |
90 |
90 |
88 |
|
Fork Adjustable Width |
(mm) |
150-690 |
160-690 |
540 Fixed |
|
Fork Length |
(mm) |
800 |
1000 |
1150 |
|
Fork Width |
(mm) |
60 |
70 |
160 |
|
Effort Force to Rated Load |
(N) |
100 |
120 |
100 |
|
Lifting Height per Stroke |
(mm) |
40 |
22 |
9.5 |
|
Ground Clearance |
(mm) |
18 |
18 |
24 |
|
Min. Turning Radius (outside) |
(mm) |
1075 |
1075 |
1250 |
|
Front Load Roller |
(mm) |
Φ80×47 |
Φ80×47 |
Φ80×94 |
|
Steering Wheel |
(mm) |
Φ150×40 |
Φ150×40 |
Φ150×50 |
|
Overall Size(L×W×H) |
(mm) |
1325×725×2030 |
1325×725×2030 |
1600×725×1930 |
|
Net Weight |
(kg) |
140 |
146 |
182 |
