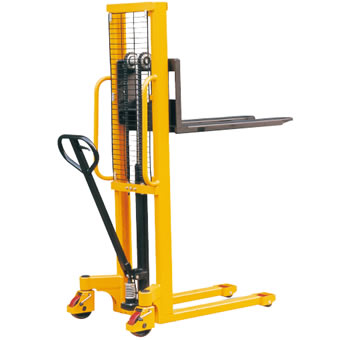

Hand Stacker
Product Model :
|
Hand Stacker PA series
* Latest technology of hydraulic pump with less effort force. Top quality German seal kit.
* Heavy duty 1 piece “C” section forks for greatest strength.
* Option adjustable forks for wider applications.
* PZ series is economic range but reliable.
* Conforms to EN1757-1.
|

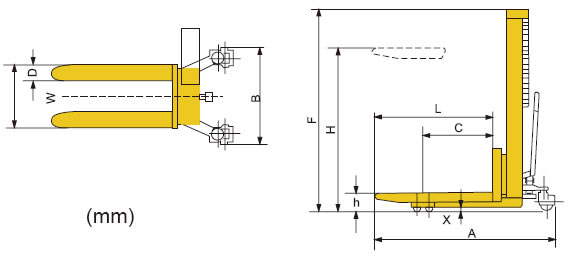

Model |
|
PA0515 |
PA1015 |
PA1025 |
PA1515 |
PA2015 |
|
Capacity |
(kg) |
500 |
1000 |
1000 |
1500 |
2000 |
|
Load Centre |
C (mm) |
585 |
585 |
585 |
585 |
585 |
|
Max. Fork Height |
H (mm) |
1500 |
1500 |
2500 |
1500 |
1500 |
|
Min. Fork Height |
h (mm) |
88 |
88 |
88 |
88 |
88 |
|
Fork Length |
L (mm) |
1150 |
1150 |
1150 |
1150 |
1150 |
|
Fork Width |
D (mm) |
160 |
160 |
160 |
160 |
160 |
|
Overall Fork Width |
W (mm) |
540 |
540 |
540 |
540 |
540 |
|
Lifting Height Per Stroke |
(mm) |
20 |
12.5 |
12.5 |
12.5 |
10 |
|
Ground Clearance |
X (mm) |
24 |
24 |
24 |
24 |
24 |
|
Min. turning Radius(outside) |
(mm) |
1086 |
1086 |
1086 |
1100 |
1100 |
|
Front Load Roller |
(mm) |
Φ80×70 |
Φ80×70 |
Φ80×70 |
Φ80×70 |
Φ80×70 |
|
Steering Wheel |
(mm) |
Φ150×40 |
Φ150×50 |
Φ150×50 |
Φ180×50 |
Φ180×50 |
|
Overall Length |
A (mm) |
1604 |
1604 |
1646 |
1665 |
1695 |
|
Overall Width |
B (mm) |
794 |
760 |
760 |
720 |
720 |
|
Overall Height |
F (mm) |
2010 |
2010 |
1960 |
2010 |
2010 |
|
Net Weight |
(kg) |
210 |
220 |
330 |
250 |
280 |
| Option adjustable fork available:346-710mm fork width on PA series | ||||||
| Note:Materials and specification are subject to change without notice. | ||||||
