Electric Fork Stacker
Product Model :
|

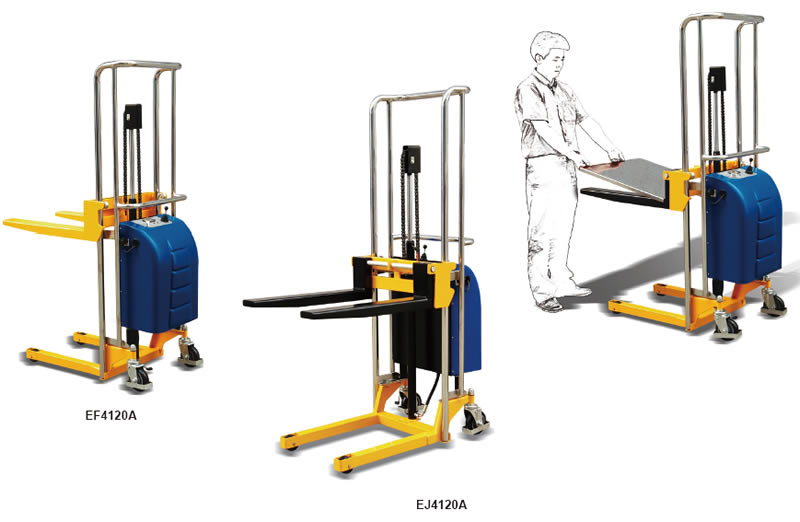

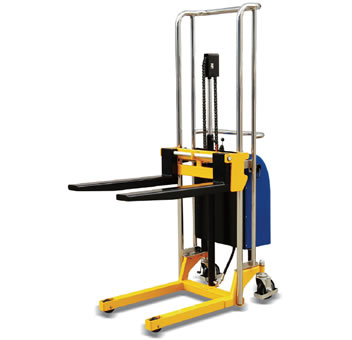

Electric Fork Stacker EF·A / EJ·A series
* Low profile forks can lift the pallet easily.
* Easier and faster lifting operation.
* High quality hydraulic motor made in Italy.
* Service free battery.
* Option platform available.
* No-marking castor as standard.
* Conforms to 1757-1 : 2001.
|
Model (Fixed Fork) |
|
EF2085A |
EF2120A |
EF4085A |
EF4120A |
EF4150A |
|
Model (Adjustable Fork) |
|
EJ2085A |
EJ2120A |
EJ4085A |
EJ4120A |
EJ4150A |
|
Capacity |
(kg) |
200 |
200 |
400 |
400 |
400 |
|
Max. Fork Height |
(mm) |
850 |
1200 |
850 |
1200 |
1500 |
|
Min. Fork Height |
(mm) |
80 |
80 |
80 |
80 |
80 |
|
Fork Length |
(mm) |
600 |
600 |
650 |
650 |
650 |
|
Fixed Fork Width(EF series) |
(mm) |
500 |
500 |
550 |
550 |
550 |
|
Adjustable Fork Width(EJ series) |
(mm) |
215-500 |
215-500 |
235-500 |
235-500 |
235-500 |
|
Single Fork Width |
(mm) |
100 |
100 |
110 |
110 |
110 |
|
Dia of Front Wheel |
(mm) |
Φ75 |
Φ75 |
Φ75 |
Φ75 |
Φ75 |
|
Dia of Steering Wheel |
(mm) |
Φ125 |
Φ125 |
Φ125 |
Φ125 |
Φ125 |
|
Chassis height |
(mm) |
32.5 |
32.5 |
22.5 |
22.5 |
22.5 |
|
Power Pack Motor |
(KW) |
0.8 |
0.8 |
0.8 |
0.8 |
0.8 |
|
Battery |
(Ah/V) |
60/12 |
60/12 |
70/12 |
70/12 |
70/12 |
|
Overall Height |
(mm) |
1080 |
1435 |
1060 |
1410 |
1710 |
|
Overall Width |
(mm) |
560 |
560 |
590 |
590 |
590 |
|
Overall Length |
(mm) |
1020 |
1020 |
1100 |
1100 |
1100 |
|
Net Weight |
EF series (kg) |
90 |
97 |
105 |
116 |
122 |
|
EJ series (kg) |
93 |
100 |
110 |
121 |
127 |
|
|
Option Platform |
|
LP10 (610×53O) |
LP10 (610×53O) |
LP20 (660×58O) |
LP20 (660×58O) |
LP20 (660×58O) |
