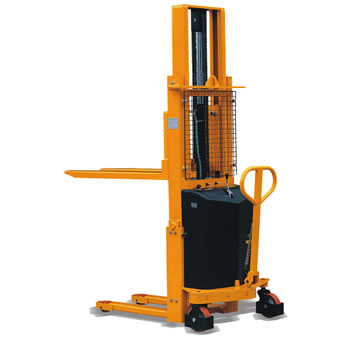

Semi-Electric Stacker
Product Model :
|
Semi-Electric Stacker MS series
* Heavy duty design and top quality mast construction.
* Safety guard on load roller and steering wheel.
* Lift and easy manual steering system.
* Stepless speed of lifting / lowering.
* Conforms to EN1757-1 : 2001, EN1727.
|
Model |
|
MS1016 |
MS1024 |
MS1029 |
MS1031 |
MS1033 |
|
Capacity |
(kg) |
1000 |
1000 |
1000 |
1000 |
1000 |
|
Lifting Height |
(mm) |
1600 |
2450 |
2900 |
3100 |
3300 |
|
Lifting Speed |
With Load (mm/s) |
95 |
95 |
95 |
95 |
95 |
|
Without Load (mm/s) |
127 |
127 |
127 |
127 |
127 |
|
|
Power Pack |
(W) |
1500 |
1500 |
1500 |
1500 |
1500 |
|
Battery(Service free) |
(Ah/V) |
120/12 |
120/12 |
120/12 |
120/12 |
120/12 |
|
Battery Charger |
(A/V) |
12/12 |
12/12 |
12/12 |
12/12 |
12/12 |
|
Steering Wheel |
(mm) |
Φ180×50 |
Φ180×50 |
Φ180×50 |
Φ180×50 |
Φ180×50 |
|
Load Roller |
(mm) |
Φ82×70 |
Φ82×70 |
Φ82×70 |
Φ82×70 |
Φ82×70 |
|

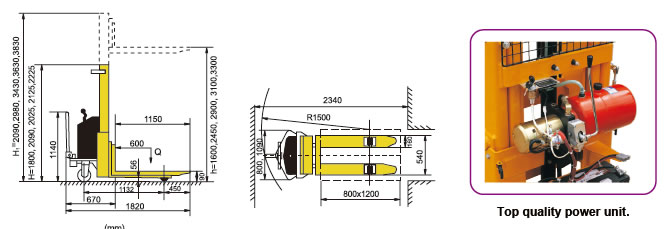

Overall Length |
(mm) |
1820 |
1820 |
1820 |
1820 |
1820 |
|
Overall width |
(mm) |
800 |
800 |
800 |
1000 |
1000 |
|
Overall Height |
(mm) |
2090 |
1800 |
2025 |
2125 |
2225 |
|
Net Weight (with battery) |
(kg) |
420 |
460 |
490 |
530 |
550 |
