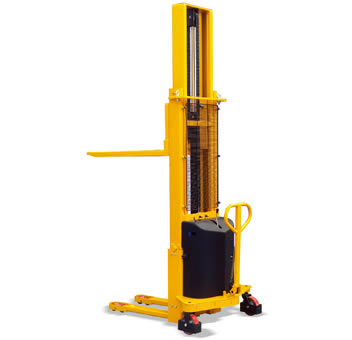

Semi-Electric Stacker
Product Model :
|
Semi-Electric Stacker MS series
* Heavy duty design and top quality mast construction.
* Safety guard on load roller and steering wheel.
* Lift and easy manual steering system.
* Conforms to EN1757-1 : 2001, EN1727.
|
Model |
|
MS1516 |
MS1524 |
MS1529 |
MS1531 |
MS1533 |
|
Capacity |
(kg) |
1500 |
1500 |
1500 |
1500 |
1500 |
|

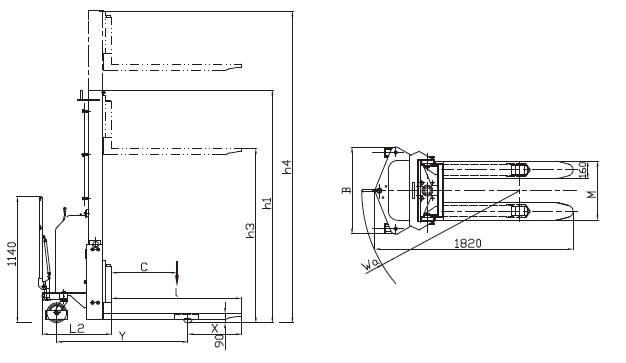

Max.Fork Height |
h3 (mm) |
1600 |
2450 |
2900 |
3100 |
3300 |
|
Min.Fork Height |
(mm) |
90 |
||||
|
Load Center |
C (mm) |
400 |
||||
|
Wheels Base |
Y (mm) |
1132 |
||||
|
Load Distance |
X (mm) |
450 |
||||
|
Truck Length incl.Fork Face |
L2 (mm) |
670 |
||||
|
Lifting Speed (with/without load) |
(mm/s) |
64/94 |
||||
|
Lowering Speed (with/without load) |
(mm/s) |
106/74 |
||||
|
Fork Length |
I(mm) |
1150 |
||||
|
Fork Overall Width |
M (mm) |
540 |
||||
|
Single Fork Width |
(mm) |
160 |
||||
|
Front Wheel |
(mm) |
Φ82×70 |
||||
|
Rear Wheel |
(mm) |
Φ180×50 |
||||
|
Turning Radius |
Wa(mm) |
1500 |
||||
|
Power Pack |
(KW/V) |
1.6/12 |
||||
|
Battery |
(Ah/V) |
180×2/12 |
||||
|
Charger |
(A/V) |
12/12 |
||||
|
Overall Length |
L(mm) |
1820 |
||||
|
Overall Width |
B (mm) |
800 |
800 |
800 |
1000 |
1000 |
|
Overall Height |
h1 (mm) |
2125 |
1800 |
2025 |
2125 |
2225 |
|
Net Weight (with battery) |
(kg) |
480 |
540 |
580 |
595 |
610 |
