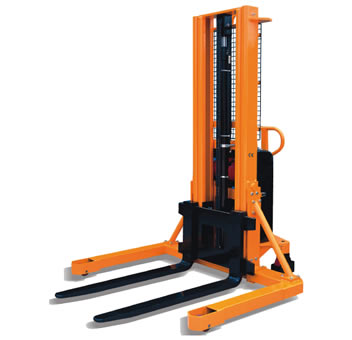

Semi-Electric Stacker
Product Model :
|
Semi-Electric Stacker MW series
with straddle leg
* Heavy duty design with quality mast construction.
* Drop forged forks.
* Straddle leg design suitable for two faces or low pallet.
* Safety guard on load roller and steering wheel.
* Light and easy manual steering system.
* High quality trouble free power pack.
* Conforms to EN1757-1: 2001, EN1727.
|
Model |
|
MW1016 |
MW1024 |
MW1029 |
MW1031 |
MW1033 |
|
Capacity |
(kg) |
1000 |
1000 |
1000 |
1000 |
1000 |
|
Max. Fork Height |
(mm) |
1600 |
2450 |
2900 |
3100 |
3300 |
|
Min. Fork Height |
(mm) |
65 |
65 |
65 |
65 |
65 |
|
Load Centre |
(mm) |
500 |
500 |
500 |
500 |
500 |
|
Fork Length |
(mm) |
1000 |
1000 |
1000 |
1000 |
1000 |
|
Fork Width |
(mm) |
Adjustable 230-790 |
Adjustable 230-790 |
Adjustable 230-790 |
Adjustable 230-790 |
Adjustable 230-790 |
|
Leg Width |
(inside) (mm) |
1270 |
1270 |
1270 |
1270 |
1270 |
|
Lifting Speed |
With Load (mm/s) |
95 |
95 |
95 |
95 |
95 |
|
Without Load (mm/s) |
127 |
127 |
127 |
127 |
127 |
|
|
Power Unit |
(W) |
1500 |
1500 |
1500 |
1500 |
1500 |
|
Battery |
(Ah/V) |
120/12 |
120/12 |
120/12 |
120/12 |
120/12 |
|
Battery Charger |
(A/V) |
12/12 |
12/12 |
12/12 |
12/12 |
12/12 |
|
Steering Wheel |
(mm) |
Φ180×50 |
Φ180×50 |
Φ180×50 |
Φ180×50 |
Φ180×50 |
|
Load Roller |
(mm) |
Φ82×70 |
Φ82×70 |
Φ82×70 |
Φ82×70 |
Φ82×70 |
|
Overall Length |
(mm) |
1674 |
1710 |
1674 |
1674 |
1674 |
|
Overall Width |
(mm) |
1502 |
1505 |
1502 |
102 |
1502 |
|
Overall Height |
(mm) |
2090 |
1800 |
2000 |
2125 |
2225 |
|
Net Weight |
(with battery) (kg) |
482 |
552 |
573 |
582 |
592 |
