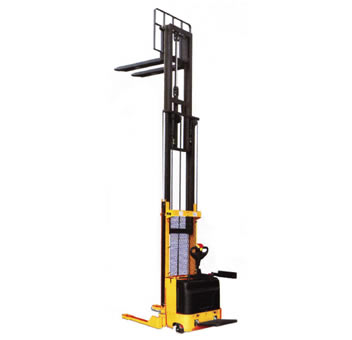

Full Electric Stacker
Product Model :
|
Full Electric Stacker FK / BK series
* Heavy duty design with top quality mast construction.
* Powerful drive wheel and power unit made in Europe.
* Top quality electronic control system from Curtis.
* Conforms to EN1757-1:2001, EN 1726.
|

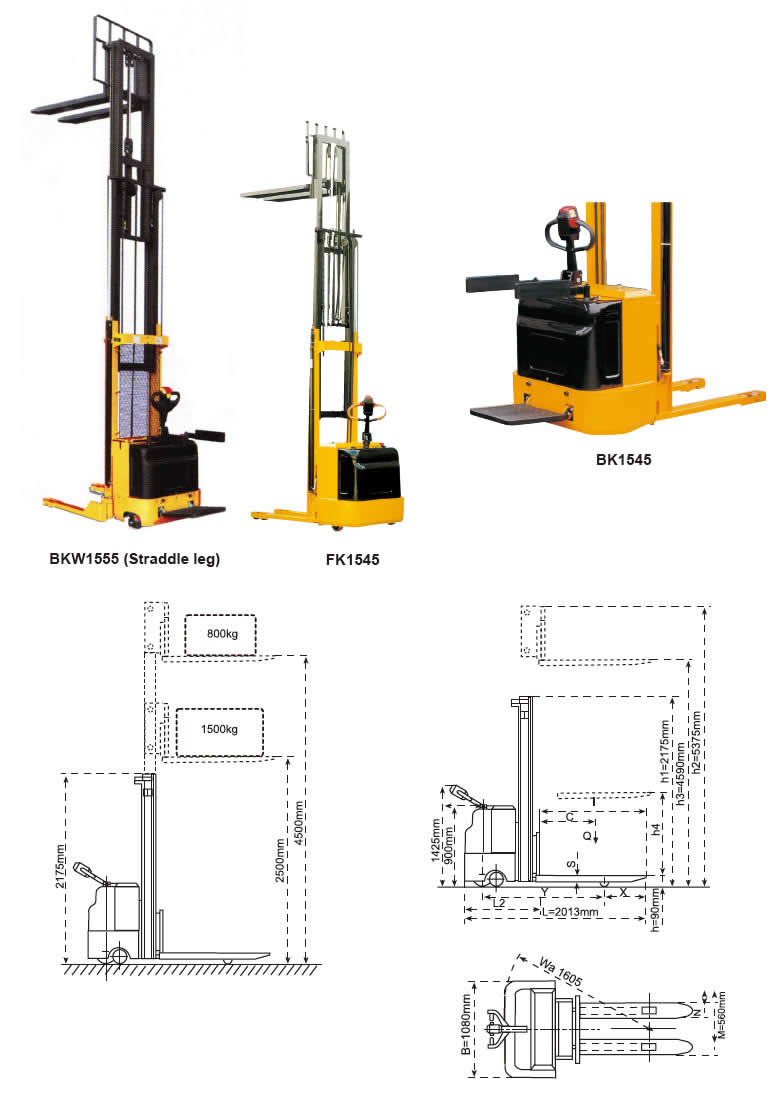

Model |
|
FK1545 |
BK1545 |
BKW1555 |
|
Type |
Standard |
Platform |
Platform |
|
|
Capacity |
(kg) |
1500 |
1500 |
1500 |
|
Load Centre |
(mm) |
600 |
600 |
600 |
|
Max. Fork Height |
(mm) |
4500 |
4500 |
5500 |
|
Lowered Fork Height |
(mm) |
90 |
90 |
90 |
|
Full Free Lifting Leight |
(mm) |
1550 |
1550 |
1717 |
|
Fork Length |
(mm) |
1150 |
1150 |
1000 |
|
Fork Overall Width |
(mm) |
560 |
560 |
200-950 |
|
Fork Individual Width |
(mm) |
160 |
160 |
160 |
|
Travelling Speed (with & without load) |
(km/h) |
5.2/6.8 |
5.2/6.8 |
5.2/6.8 |
|
Lifting Speed (with & without load) |
(mm/s) |
127/170 |
127/170 |
127/170 |
|
Lowering Speed |
(mm/s) |
150/128 |
150/128 |
127/170 |
|
Motors Travelling |
(W) |
1200 |
1200 |
1200 |
|
Motors Lifting |
(W) |
3000 |
3000 |
3000 |
|
Front Roller, Tandem |
(mm) |
Φ78×70 |
Φ78×70 |
Φ78×70 |
|
Rear Roller |
(mm) |
Φ150×50 |
Φ150×50 |
Φ150×50 |
|
Driver Wheel |
(mm) |
Φ250×80 |
Φ250×80 |
Φ250×80 |
|
Traction Battery |
(Ah/V) |
240/24 |
240/24 |
240/24 |
|
Battery Charger |
(A/V) |
30/24 |
30/24 |
30/24 |
|
Weight of battery |
(kg) |
230 |
230 |
230 |
|
Overall Dimersions |
(mm) |
2013x1080x2175 |
2507x1080x2175 |
2507x940x2175 |
|
Net Weight (without battery) |
(kg) |
1010 |
1035 |
1370 |
