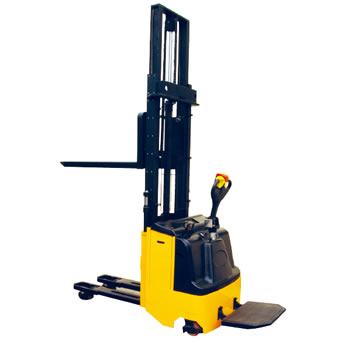

Double-Pallet Stacker
Product Model :
|
Double-Pallet Stacker FD series
* Capacity 1200kg, 1500kg
* New tiller made by REMA, German
* Carry double Pallets one time with high effici ency.
* High-comfort tiller grip reduces fatigue, improving productivity.
* Heavy-duty design with top quality mast construction.
* Powerful drive unit and power pack are made in Europe.
* Top quality electronic control system made in Europe.
* Conforms to EN 1757-1:2001, EN 1726.
|
Model |
|
FD1224 |
FD1524 |
FD1229 |
FD1529 |
FD1233 |
FD1533 |
|
Capacity |
(kg) |
1200 |
1500 |
1200 |
1500 |
1200 |
1500 |
|
Lifting Height |
(mm) |
2450 |
2450 |
2900 |
2900 |
3300 |
3300 |
|
Load Centre |
(mm) |
600 |
|||||
|
Fork Length |
(mm) |
1150 |
|||||
|
Fork Width |
(mm) |
680 |
|||||
|
Motors Travelling |
(W/V) |
2000/24 |
|||||
|
Motors Lifting |
(W/V) |
2000/24 |
|||||
|
Driver Wheel |
(mm) |
Φ230×75 |
|||||
|
Front Roller |
(mm) |
Φ80×70 |
|||||
|
Rear Roller |
(mm) |
Φ140×60 |
|||||
|
Battery |
(Ah/V) |
240/24 |
|||||
|
Net Weight |
(kg) |
850 |
850 |
875 |
875 |
897 |
897 |
|

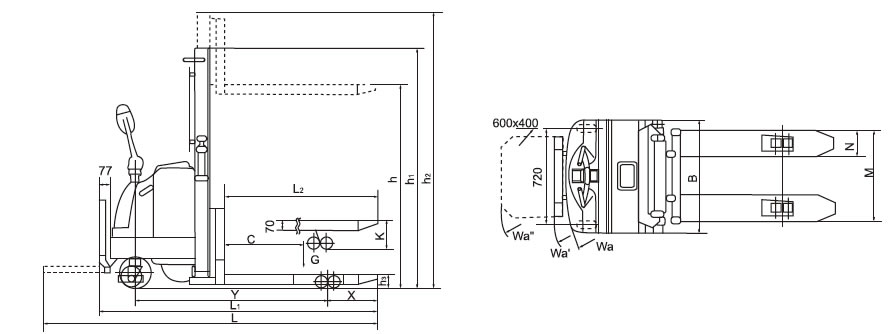

Dimension |
X (mm) |
380 |
|||||
|
Y (mm) |
1431 |
||||||
|
L1 (mm) |
2080 |
||||||
|
L (mm) |
2493 |
||||||
|
K (mm) |
210 |
||||||
|
h1 (mm) |
1840 |
1840 |
2029 |
2029 |
2229 |
2229 |
|
|
h2 (mm) |
2984 |
2984 |
3434 |
3434 |
3834 |
3834 |
|
|
h3 (mm) |
90 |
||||||
|
N (mm) |
190 |
||||||
|
B (mm) |
844 |
||||||
|
Wa |
1625 |
||||||
|
Wa’ |
1730 |
||||||
|
Wa” |
2125 |
||||||
