Counter Balance Stacker
Product Model :
|

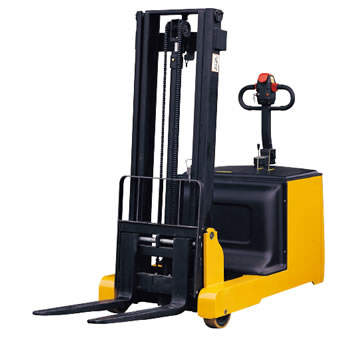

Counter Balance Stacker FX series
* The non-straddle lift is ideal for feeding machinery or lifting to docks and mezzanines where base legs could interfere.
* Heavy-duty mast can been adjusted to suitable degree.
* Forged fork for easy access.
* Powerful drive and power unit made in Europe.
* Top quality electronic control system from Curtis.
* Conforms to EN 1757-1:2001, EN1726.
|
Model |
|
FX0625 |
FX0733 |
FX1025 |
|
Capacity |
(kg) |
600 |
750 |
1000 |
|
Max. Fork Height |
(mm) |
2500 |
3300 |
2500 |
|
Lowered Lifting Height |
(mm) |
35 |
35 |
35 |
|
Free Lifting Height |
(mm) |
140 |
140 |
140 |
|
Load Centre |
(mm) |
400 |
400 |
400 |
|
Mast Tilt Angle |
-7° ~ 1° |
-7° ~ 1° |
-7° ~ 1° |
|
|
Fork Length |
(mm) |
1000 |
1000 |
800 |
|
Front Wheel |
(mm) |
Φ200×80 |
Φ200×80 |
Φ200×80 |
|
Driver Wheel |
1.2KW/24V, Φ250×80mm |
1.2KW/24V, Φ250×80mm |
1.2KW/24V, Φ250×80mm |
|
|
Power Pack (Walking) |
(KW/V) |
1.2/24 |
1.2/24 |
1.2/24 |
|
(Lifting) |
(KW/V) |
2.0/24 |
2.0/24 |
2.0/24 |
|
Traction Battery/Charger |
240Ah/24V, 210kg; 30A/24V |
240Ah/24V, 210kg; 30A/24V |
240Ah/24V, 210kg; 30A/24V |
|
|
Net Weight |
(kg) |
1515 |
1515 |
1515 |
|

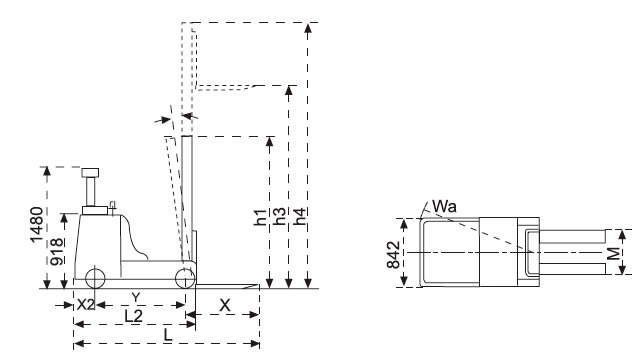

Dimension |
X (mm) |
920 |
920 |
920 |
|
X2 (mm) |
245 |
245 |
245 |
|
|
Y (mm) |
1130 |
1130 |
1130 |
|
|
L2 (mm) |
1485 |
1485 |
1485 |
|
|
L (mm) |
2295 |
2295 |
2295 |
|
|
M (mm) |
220-540 |
220-540 |
220-540 |
|
|
N (mm) |
100 |
100 |
100 |
|
|
h1 (mm) |
1860 |
2260 |
1860 |
|
|
h3 (mm) |
2500 |
3300 |
2500 |
|
|
h4 (mm) |
3275 |
4075 |
3275 |
|
|
Wa (mm) |
1375 |
1375 |
1375 |
