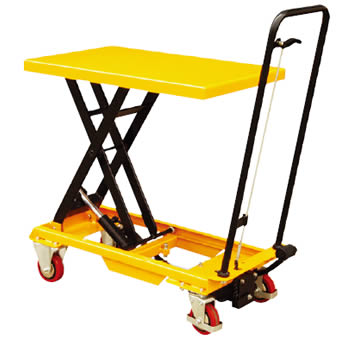

Lift Table
Product Model :
|
Lift Table AS series
* Economic range but reliable.
* New design to meet norm EN1570: 1999.
* New hydraulic system increases safety and protects your goods, stepless rate of lowering system remains irrespective of the weight of the load.
| Model | AS20 | AS30 | AS50 | AS80 | AS35D | |
| Capacity | (kg) | 200 | 300 | 500 | 800 | 350 |
| Table Size | LxW (mm) | 700x450 | 852x502 | 852x502 | 920x520 | 920x520 |
| Table Height | Hmin/Hmax (mm) | 265/755 | 330/910 | 390/910 | 442/1000 | 435/1500 |
| Handle Height | h (mm) | 980 | 1100 | 1100 | 1130 | 1130 |
| Wheel Dia. | (mm) | Φ100 | Φ125 | Φ125 | Φ150 | Φ150 |
| Overall Size | BxC (mm) | 450x870 | 502x1050 | 502x1050 | 520x1170 | 520x1170 |
| Foot Pedal to Max. Height | ≤25 | ≤30 | ≤40 | ≤70 | ≤70 | |
| Net Weight | (kg) | 44 | 74 | 81 | 114 | 125 |
