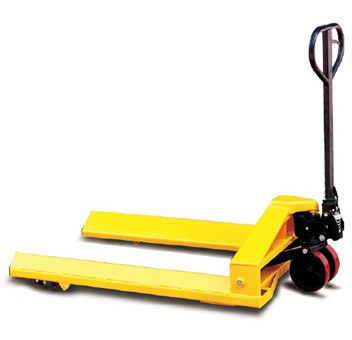

Roll Pallet Truck
Product Model :
|
Roll Pallet Truck HR series
* Conforms to EN1757-2.
|
Model |
|
HR15A |
HR15B |
HR18C |
|
Capacity |
(kg) |
1500 |
1500 |
1800 |
|

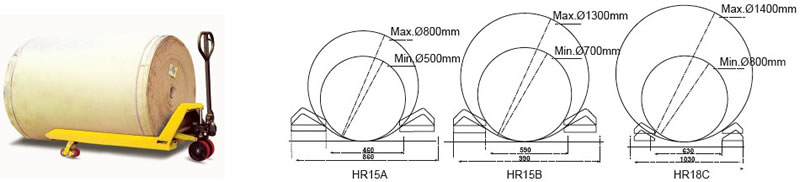

Min. Roll Diameter |
(mm) |
Φ500 |
Φ700 |
Φ800 |
|
Max. Roll Diameter |
(mm) |
Φ800 |
Φ1300 |
Φ1400 |
|
Max. Roll Length |
(mm) |
1500 |
1500 |
1500 |
|
Fork Overall Width |
(mm) |
860 |
990 |
1030 |
|
Fork Length |
(mm) |
1350 |
1350 |
1350 |
|
Rear Wheel |
(mm) |
Φ200 |
Φ200 |
Φ200 |
|
Net Weight |
(kg) |
130 |
140 |
155 |
