Adjustable Work Positioners
Product Model :
|

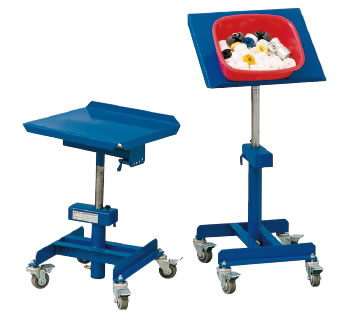

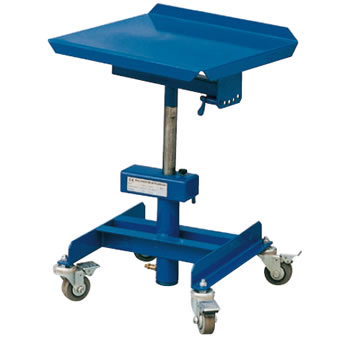

Adjustable Work Positioners XL series
* Reduces ergonomic strain-positions your work at the precise height and angle you select.
* Choose table height range 510-700mm or 720-1070mm great for dies, mould, parts bin, etc.
* Lightweight, mobile, all-steel construction.
* Platform can be set at various heights and tilted to a certain angle to reduce strain and overexertion.
* Telescoping shaft with safety lever secures the work positioners to the height you want.
* Four swivel casters marking the work positioners extremely easy to maneuver.
* Angle of table is adjustable from 0-40°.
* A valve core for pneumatic purpose.
Model |
|
XL15A |
XL15B |
Capacity |
(kg) |
150 |
150 |
Table Height Range |
(mm) |
510-700 |
720-1070 |
Adjustable Table Angle |
0-40° |
0-40° |
|
Net Weight |
(kg) |
28 |
30 |
