Digital Load Indicators ID series
Product Model :
|
Digital Load Indicators ID series

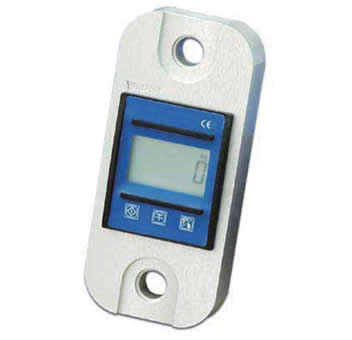

* HARDLIFT load indictor is a mechanical measuring instrument with electronic display.
* Because of its flexibility the load indictor has universal applications.
* Whether used as a conventional crane scale or to measure forces, it is the economical
choice for various applications. It can be used in conjunction with shackles and hooks.
* The load indictor is provided with liquid crystal display (LCD) which can tare as well as
show either the gross or the net load.
* It also indicates the overload protection at 110% of the gross weight and the status of the battery.
* Conforms to CE safety standard.
|
Model |
|
ID250 |
ID500 |
ID1000 |
ID2000 |
ID3200 |
ID6400 |
|
Max Capacity |
lbs.(kg) |
550(250) |
1100(500) |
2200(1000) |
4400(2000) |
7000(3200) |
14000(6400) |
|
Precision |
lbs.(kg) |
4(2) |
8(4) |
16(8) |
30(15) |
50(25) |
100(50) |
|
Indexing Accuracy |
lbs.(kg) |
1(0.5) |
2(0.9) |
2(0.9) |
10(4.5) |
10(4.5) |
20(9) |
|
Test Capacity |
lbs.(kg) |
1100(500) |
2200(1000) |
4400(2200) |
8800(4000) |
14000(6400) |
39000(12800) |
|
Net Weight |
lbs.(kg) |
1.1(0.5) |
1.1(0.5) |
1.1(0.5) |
1.3(0.6) |
1.5(0.7) |
2.3(1) |
|
Figure dimension |
A |
8.66(220) |
8.66(220) |
8.66(220) |
9.17(233) |
9.57(234) |
10.8(274) |
|
B |
3.54(89.9) |
3.54(89.9) |
3.54(89.9) |
3.54(89.9) |
3.81(96.8) |
4.52(114.8) |
|
|
C |
1.65(41.9) |
1.65(41.9) |
1.65(41.9) |
1.89(48.0) |
1.89(48.0) |
1.89(48.0) |
|
|
ΦD |
0.55(14.0) |
0.55(14.0) |
0.55(14.0) |
0.86(21.8) |
0.86(21.8) |
1.1(27.9) |
|
|
E |
7.71(195.8) |
7.71(195.8) |
7.71(195.8) |
8.15(207.0) |
8.15(207.0) |
8.54(216.9) |
|
|
F |
0.47(11.9) |
0.47(11.9) |
0.47(11.9) |
0.51(12.7) |
0.71(18.0) |
1.14(29) |
|
|
G |
1.38(31.5) |
1.38(31.5) |
1.38(31.5) |
1.77(45.0) |
1.77(45.0) |
2.13(54.1) |
|
|
H |
1.43(36.3) |
1.43(36.3) |
1.43(36.3) |
1.83(46.5) |
2.2(55.9) |
2.75(69.9) |
|
|
I |
0.62(26.9) |
0.62(26.9) |
0.62(26.9) |
1.0(25.4) |
1.0(25.4) |
1.0(25.4) |
|
|
J |
1.06(26.9) |
1.06(26.9) |
1.06(26.9) |
1.3(33.0) |
1.3(33.0) |
1.3(33.0) |
|
|
K |
0.4(10.2) |
0.4(10.2) |
0.4(10.2) |
0.4(10.2) |
0.4(10.2) |
0.4(10.2) |
|
| HARDLIFT load indicator feature include, high accuracy, lightweight design, easy to display, easy to use, excellent qualit, sturdy design,retains the maximum value to memory. | |||||||
