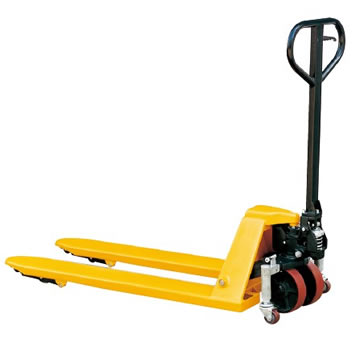

Four Way Pallet Truck
Product Model :
  • HPF12S
  • HPF12L

Four Way Pallet Truck    HPF series

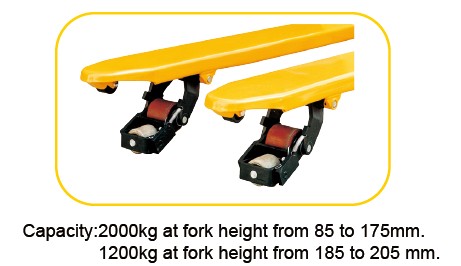

* Unique 4-direcional movement capacity provides the flexibility to maneuver wide loads through standard aiales.
* An additional set of wheels allows pallet truck to be moved sideways in addition to be the conventional
forward and back directions.
* Move heavy loads. quickly and effortlessly, with convenient hydraulic power and industrial quality features.
* Trucks are constructed of 4mm thick steel with reinforced fork bracing.
* Include sealed ball bearings on wheels that are permanently lubed and polyurethane coated.
* Handle has a cushion grip with a 3-position lever.







 Model

 HPF12S

 HPF12L

 Capacity

 (kg)

 2000/1200

 2000/1200

 Max. Fork Height

 (mm)

 205

 205

 Min. Fork Height

 (mm)

 85

 85

 Fork Length

 (mm)

 1150

 1150

 Width Overall Forks

 (mm)

 540

 680

 Rear Wheel

 (mm)

 Φ200

 Φ200

 Net Weight

 (kg)

 75

 78
